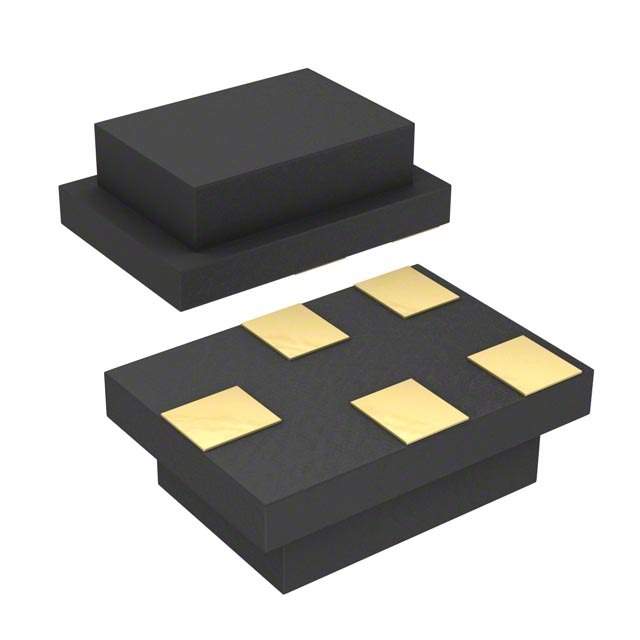

B39941-B7820-C710 Real Image
Same model may have multiple batches, images only for reference.

B39941-B7820-C710

Part No B39941-B7820-C710
Manufacturer EPCOS (TDK)
Catalog SAW Filters
Description FILTER SAW 942.5MHZ LOWLOSS SMD
Datasheet
B39941-B7820-C710 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer EPCOS (TDK)
Packaging Reel - TR
Status Obsolete(EOL)
Frequency - Center 942.5MHz
Bandwidth 35MHz
Insertion Loss 1.9dB
Applications Cellular, GSM
Mounting SMD (SMT)
Height (Max) 0.027" (0.68mm)
Dimension 0.079" L x 0.055" W (2.00mm x 1.40mm)
Win Source Part Number 229393-B39941-B7820-C710
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B39941-B7820-C710 CAD Model

Description

Overview

The B39941-B7820-C710 provides exceptional signal clarity and efficiency, making it suitable for various RF applications.

Applications

  • Mobile communication devices
  • Wireless networking equipment
  • Antenna systems

Features and Benefits

  • Wide bandwidth support
  • Robust construction
  • Low emission rates

Additional Details

Designed for both commercial and consumer electronics, the B39941-B7820-C710 offers consistent performance in various operational conditions.
