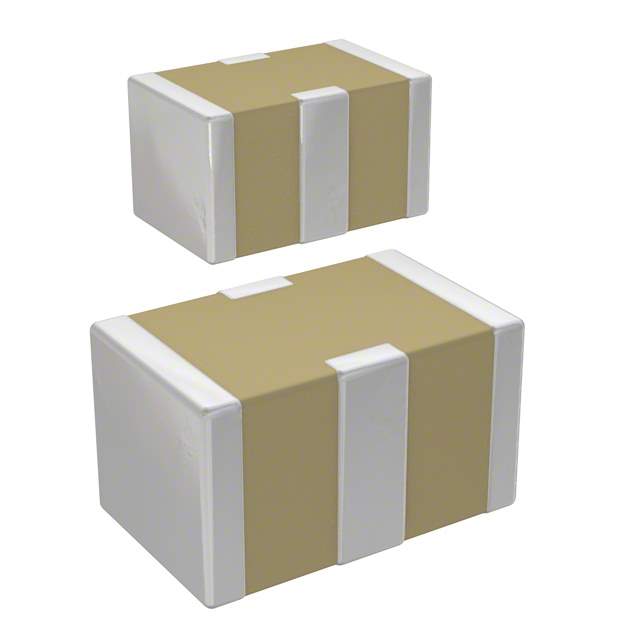

W2H11A1018AT1F Real Image
Same model may have multiple batches, images only for reference.

W2H11A1018AT1F

Part No W2H11A1018AT1F
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP FEEDTHRU 100PF 100V 0805 / 100 pF Feed Through Capacitor 100V 500 mA 150mOhm 0805 (2012 Metric), 4 PC Pad
Datasheet
W2H11A1018AT1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Feed Through Capacitors
Mfr KYOCERA AVX
Series W2H
Package Tape & Reel
Capacitance 100 pF
Tolerance -20%, +50%
Voltage - Rated 100V
Current 500 mA
DC Resistance (DCR) (Max) 150mOhm
Temperature Range - Operating -55°C ~ 125°C
Temperature Coefficient C0G, NP0
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric), 4 PC Pad
Dimension 0.079" L x 0.049" W (2.01mm x 1.25mm)
Height (Max) 0.045" (1.14mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.24.0020
Other Names 478-13178-2,478-13178-1,478-13178-6
Standard Package 1,000
Win Source Part Number 1061481-W2H11A1018AT1F
Ultra Librarian 3D Model Ultra Librarian W2H11A1018AT1F CAD Model

Description

The W2H series feed-through capacitor is an electronic component designed for use in various applications.

  • Capacitance: 100 pF
  • Voltage Rating: 100V
  • Tolerance: -20%, +50%
  • Temperature Coefficient: C0G, NP0
  • Maximum Height: 0.045" (1.14mm)
  • DC Resistance (DCR): 150mOhm Max
  • Mounting: surface-mount device (SMD)
  • Standard Package: 1,000
  • Dimension: 0.079" L x 0.049" W (2.01mm x 1.25mm)
  • Manufacturer: KYOCERA AVX
