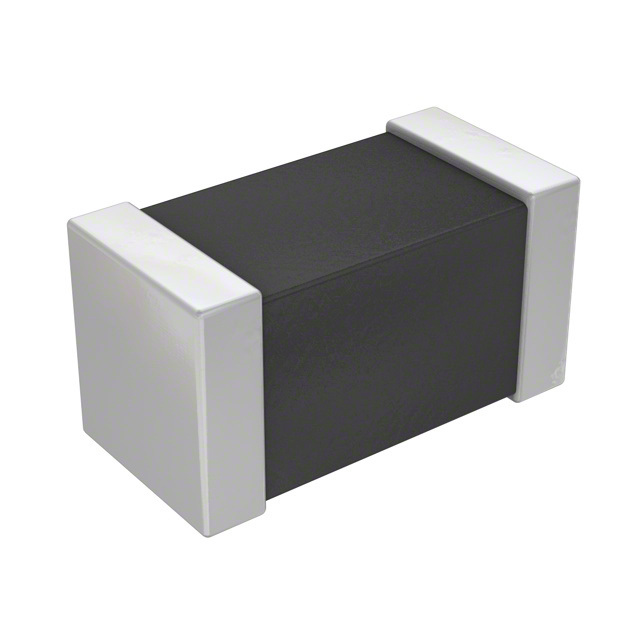

Same model may have multiple batches, images only for reference.
VC120648D101DP AVX Corp/Kyocera Corp
Same model may have multiple batches, images only for reference.

VC120648D101DP

Part No VC120648D101DP
Manufacturer AVX Corp/Kyocera Corp
Catalog TVS - Varistors, MOVs
Description VARISTOR 62V 100A 1206 / 62 V 100 A Varistor 1 Circuit Surface Mount, MLCV 1206 (3216 Metric)
Datasheet
VC120648D101DP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - Varistors, MOVs
Mfr KYOCERA AVX
Series TransGuard®
Package Tape & Reel
Product Status Active
Maximum AC Volts 34 V
Maximum DC Volts 48 V
Varistor Voltage (Min) 55.8 V
Varistor Voltage (Typ) 62 V
Varistor Voltage (Max) 68.2 V
Current - Surge 100 A
Energy 0.4J
Number of Circuits 1
Capacitance @ Frequency 225 pF @ 1 kHz
Temperature Range - Operating -55°C ~ 125°C (TA)
Mounting Type Surface Mount, MLCV
Package / Case 1206 (3216 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000
Win Source Part Number 1360892-VC120648D101DP
Ultra Librarian 3D Model Ultra Librarian VC120648D101DP CAD Model

Description

The VC120648D101DP is a varistor transient voltage suppressor from KYOCERA AVX.

  • Temperature Range: -55°C to 125°C (TA)
  • Package: 1206 (3216 Metric)
  • Mounting Type: Surface Mount
  • Capacitance: 225 pF @ 1 kHz
  • Voltage (AC Max): 34V
  • Voltage (DC Max): 48V
  • Varistor Voltage: 55.8V to 68.2V
  • Surge Current Rating: 100A
  • Energy Rating: 0.4J
  • Packaging: Tape & Reel
  • Product Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
