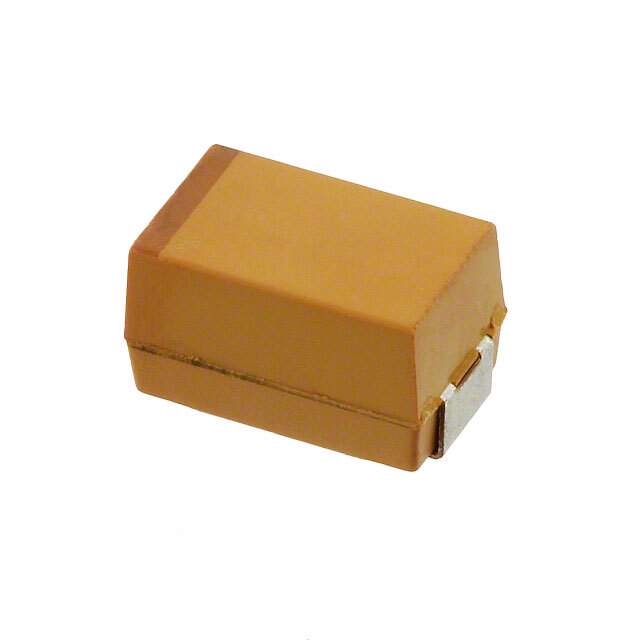

Same model may have multiple batches, images only for reference.

TCJD336M035R0070

Name: TCJD336M035R0070
Brand: AVX Corp/Kyocera Corp
SKU: 1328552
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TCJD336M035R0070
Manufacturer	AVX Corp/Kyocera Corp
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 33UF 35V 2917 / 33 µF Molded Tantalum Polymer Capacitor 35 V 2917 (7343 Metric) 70mOhm @ 100kHz
Datasheet	TCJD336M035R0070 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum - Polymer Capacitors
Manufacturer	KYOCERA AVX
Packaging	Reel - TR
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	35 V
Type	Molded
ESR (Equivalent Series Resistance)	70mOhm @ 100kHz
Temperature Range - Operating	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting	Surface Mount
Case / Package	2917 (7343 Metric)
Size / Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.122" (3.10mm)
Manufacturer Size Code	D
Features	General Purpose
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Part Number	478-6650-1,478-6650-2,478-6650-6
Standard Package	500
Win Source Part Number	1328552-TCJD336M035R0070
Ultra Librarian 3D Model	Ultra Librarian TCJD336M035R0070 CAD Model

Alternative Products

Description

KYOCERA AVX 1328552-TCJD336M035R0070 is a tantalum-polymer capacitor that is designed to provide high-capacitance and low ESR.

Manufacturer: KYOCERA AVX
Capacitance: 33 µF
Voltage Rating: 35 V
Case/Package: 2917 (7343 Metric)
Size/Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Tolerance: ±20%
ESR (Equivalent Series Resistance): 70mOhm @ 100kHz
Temperature Range: -55°C to 105°C
Lifetime: 2000 Hrs @ 105°C
Mounting Type: Surface Mountable
Packaging: Reel-tr
Standard Package: 500
