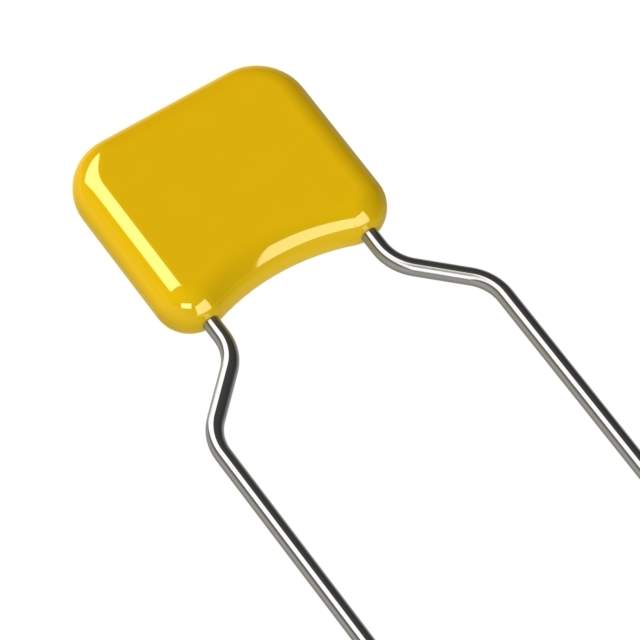

SR275E105MAA Real Image
Same model may have multiple batches, images only for reference.

SR275E105MAA

Part No SR275E105MAA
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Datasheet
SR275E105MAA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series SkyCap® SR
Package Bulk
Capacitance 1 µF
Tolerance ±20%
Voltage - Rated 50V
Temperature Coefficient Z5U
Temperature Range - Operating 10°C ~ 85°C
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial
Dimension 0.260" L x 0.150" W (6.60mm x 3.81mm)
Height - Seated (Max) 0.250" (6.35mm)
Lead Spacing 0.300" (7.62mm)
Lead Style Formed Leads
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1305706-SR275E105MAA
Ultra Librarian 3D Model Ultra Librarian SR275E105MAA CAD Model

Description

The SkyCap SR series ceramic capacitor is a general-purpose capacitor.

  • Capacitance: 1 µF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Temperature Coefficient: Z5U
  • Height: 0.250" (6.35mm)
  • Lead Spacing: 0.300" (7.62mm)
  • Mounting: Through Hole
  • Packaging: Bulk
  • Application: General-Purpose Electronics
  • Package Contains: 1,000 units
