Same model may have multiple batches, images only for reference.

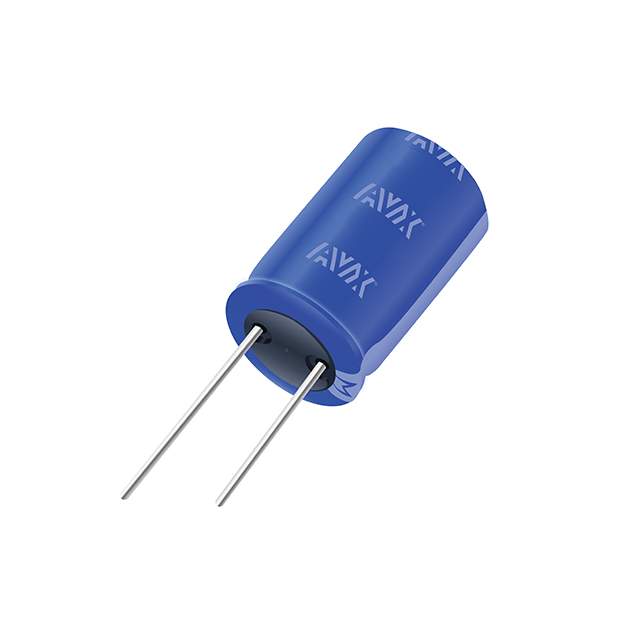

SCCS20E505PRB Real Image
Same model may have multiple batches, images only for reference.

SCCS20E505PRB

Part No SCCS20E505PRB
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Datasheet
SCCS20E505PRB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series SCC
Package Bulk
Capacitance 5 F
Tolerance 0%, +100%
Voltage - Rated 3 V
ESR (Equivalent Series Resistance) 70mOhm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 60°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.217" (5.50mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Temperature Range - Operating -40°C ~ 65°C
Other Names 478-11285,SCCS20E505SRB
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1302736-SCCS20E505PRB
Ultra Librarian 3D Model Ultra Librarian SCCS20E505PRB CAD Model

Description

The SCCS20E505PRB is an electric double layer capacitor with a capacitance of 5 F and a voltage rating of 3 V.

  • Capacitance: 5 F
  • Voltage Rating: 3 V
  • Termination: PC Pin
  • Package: Radial, Can
  • ESR: 70mOhm @ 1kHz
  • Lifetime: 1000 Hrs @ 60°C
  • Mounting Type: Through-Hole
