Same model may have multiple batches, images only for reference.

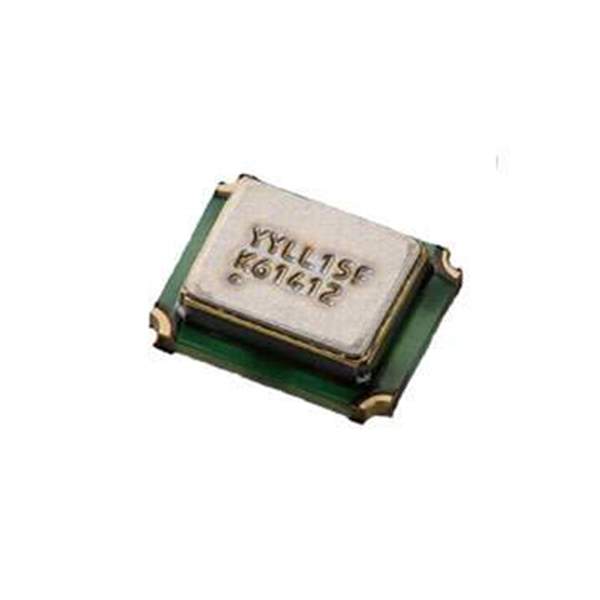

KT2520K26000CCW18ZUS Real Image
Same model may have multiple batches, images only for reference.

KT2520K26000CCW18ZUS

Part No KT2520K26000CCW18ZUS
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description XTAL OSC TCXO 26.0000MHZ SNWV / 26 MHz TCXO Clipped Sine Wave Oscillator 1.8V 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr KYOCERA AVX
Series KT2520
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type TCXO
Frequency 26 MHz
Output Clipped Sine Wave
Voltage - Supply 1.8V
Temperature Range - Operating -30°C ~ 85°C
Current - Supply (Max) 2mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 478-KT2520K26000CCW18ZUSDKR,1253-1393-6,478-KT2520K26000CCW18ZUS-ND,478-KT2520K26000CCW18ZUSTR,1253-1393-1,1253-1393-2,478-KT2520K26000CCW18ZUSCT,1253-1393-6-ND,1253-1393-1-ND,1253-1393-2-ND,478-KT2520K26000CCW18ZUS
Standard Package 3,000
Win Source Part Number 1195957-KT2520K26000CCW18ZUS
Ultra Librarian 3D Model Ultra Librarian KT2520K26000CCW18ZUS CAD Model

Description

The KT2520K26000CCW18ZUS oscillator from KYOCERA AVX is a surface-mount device that is ideal for a wide range of applications.

  • Frequency: 26 MHz
  • Voltage: 1.8V
  • Maximum Current Draw: 2mA
  • Temperature Range: -30°C to 85°C
  • Height: 0.031"
  • Packaging: Tape and reel
  • Standard Package: 3,000 units
  • Type: TCXO Oscillator
  • RoHS Compliant: Yes
  • ECCN: EAR99
