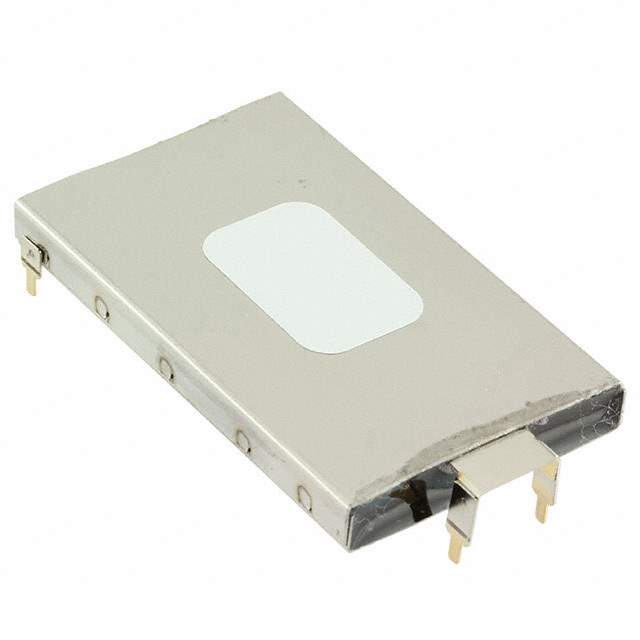

BZ12GA124ZAB Real Image
Same model may have multiple batches, images only for reference.

BZ12GA124ZAB

Part No BZ12GA124ZAB
Manufacturer AVX Corp/Kyocera Corp
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 120MF -20% +80% 16V T/H / 120 mF (EDLC) Supercapacitor 16 V BZ12, 4 Lead 160mOhm 1000 Hrs @ 70°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr KYOCERA AVX
Series BestCap® BZ
Package Bulk
Product Status Obsolete
Capacitance 120 mF
Tolerance -20%, +80%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 160mOhm
Lifetime @ Temp. 1000 Hrs @ 70°C
Termination PC Pins
Mounting Type Through Hole
Package / Case BZ12, 4 Lead
Size / Dimension 1.890" L x 1.181" W (48.00mm x 30.00mm)
Height - Seated (Max) 0.358" (9.10mm)
Temperature Range - Operating -20°C ~ 70°C
Standard Package 48
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1351854-BZ12GA124ZAB
Ultra Librarian 3D Model Ultra Librarian BZ12GA124ZAB CAD Model

Description

The Kyocera AVX electronic component with Win Source Part Number 1351854-BZ12GA124ZAB is an electric double layer capacitor (EDLC), supercapacitor belonging to the BestCap® BZ series.

  • Capacitance: 120 mF
  • Capacitance Tolerance: -20%, +80%
  • Voltage Rating: 16 V
  • ESR (Equivalent Series Resistance): 160mOhm
  • Package/Case: BZ12, 4 Lead
  • Dimensions: 1.890" L x 1.181" W (48.00mm x 30.00mm)
  • Height: 0.358" (9.10mm)
  • Operating Temperature: -20°C ~ 70°C
