Same model may have multiple batches, images only for reference.

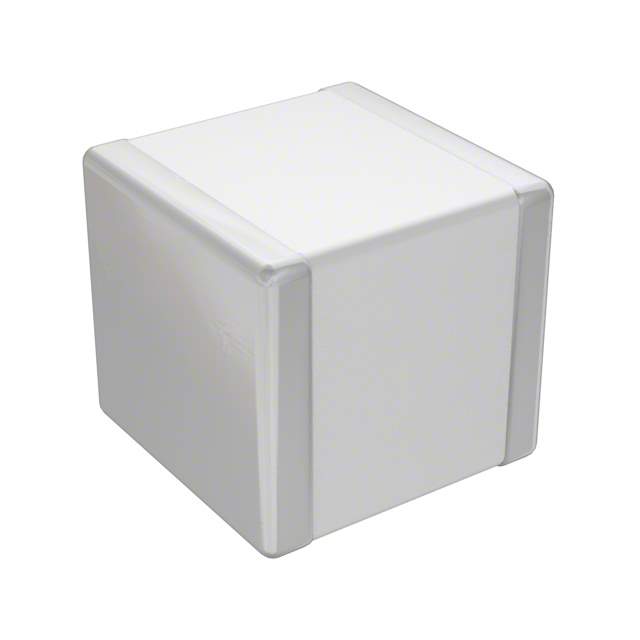

AQ147M3R0BATME Real Image
Same model may have multiple batches, images only for reference.

AQ147M3R0BATME

Part No AQ147M3R0BATME
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 3PF 500V 1111 / 3 pF ±0.1pF 500V Ceramic Capacitor M 1111 (2828 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KYOCERA AVX
Series AQ
Package Tape & Reel (TR)
Product Status Obsolete
Capacitance 3 pF
Tolerance ±0.1pF
Voltage - Rated 500V
Temperature Coefficient M
Temperature Range - Operating -55°C ~ 175°C
Features High Q, Low Loss
Applications RF, Microwave, High Frequency
Mounting Type Surface Mount, MLCC
Package / Case 1111 (2828 Metric)
Dimension 0.110" L x 0.110" W (2.79mm x 2.79mm)
Thickness (Max) 0.102" (2.59mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Standard Package 1,000
Win Source Part Number 973977-AQ147M3R0BATME
Ultra Librarian 3D Model Ultra Librarian AQ147M3R0BATME CAD Model

Description

The AQ147M3R0BATME is a ceramic capacitor from the AQ series manufactured by KYOCERA AVX.

  • Capacitance: 3 pF
  • Voltage Rating: 500V
  • Tolerance: ±0.1pF
  • Temperature Coefficient: M
  • Thickness: 0.102" (2.59mm)
  • Mounting: surface-mount multilayer ceramic capacitor (MLCC)
  • MSL Level: 1 (unlimited)
  • REACH: unaffected
  • HTSUS: 8532.24.0020
  • Package/Case: 1111 (2828 Metric)
  • Status: obsolete
