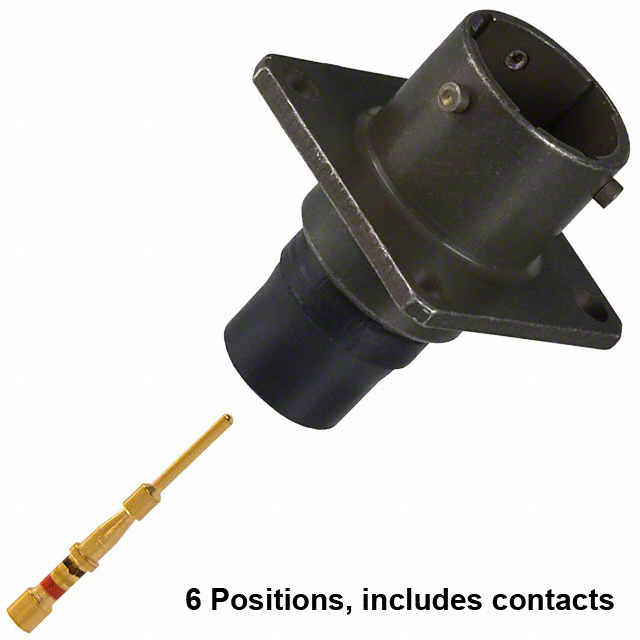

Same model may have multiple batches, images only for reference.
PT02SE-14-5P(027) Amphenol Industrial Operations – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PT02SE-14-5P(027)

Part No PT02SE-14-5P(027)
Manufacturer Amphenol Industrial Operations
Catalog Circular Connectors - Assemblies
Description MIL-26482 MS/PT/CMB RECEPT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle, Male Pins
Number of Positions 5
Qualification MIL-DTL-26482 Series I
Shell Size - Insert 14-5
Mounting Type Panel Mount
Mounting Feature Flange
Termination Crimp
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Black Zinc Cobalt
Contact Finish - Mating Gold
Color Black
Ingress Protection Environment Resistant
Features Backshell
Shielding Unshielded
Current Rating (Amps) 13A
Voltage Rating 1kVAC
Temperature Range - Operating -55°C ~ 125°C
Package Bag
Supply and Demand Status Shortage
Win Source Part Number 1616504-PT02SE-14-5P(027)
Ultra Librarian 3D Model Ultra Librarian PT02SE-14-5P(027) CAD Model
