Same model may have multiple batches, images only for reference.

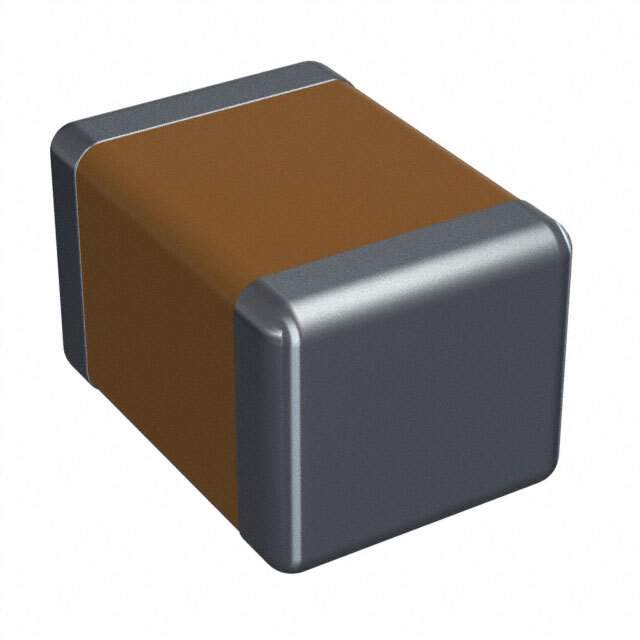

1812ZD226KAT2A Real Image
Same model may have multiple batches, images only for reference.

1812ZD226KAT2A

Part No 1812ZD226KAT2A
Manufacturer AVX Corp/Kyocera Corp
Catalog Ceramic Capacitors
Description CAP CER 22UF 10V X5R 1812 / 22 µF ±10% 10V Ceramic Capacitor X5R 1812 (4532 Metric)
Datasheet
1812ZD226KAT2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer KYOCERA AVX
Packaging Reel - TR
Capacitance 22 µF
Tolerance ±10%
Voltage - Rated 10V
Temperature Coefficient X5R
Temperature Range - Operating -55°C ~ 85°C
Applications General Purpose
Mounting Surface Mount, MLCC
Case / Package 1812 (4532 Metric)
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Thickness (Max) 0.110" (2.79mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number 478-1645-6,1812ZD226KAT2A/500,478-1645-2,478-1645-1,478-1645-6-NDR
Standard Package 500
Win Source Part Number 1330689-1812ZD226KAT2A
Ultra Librarian 3D Model Ultra Librarian 1812ZD226KAT2A CAD Model

Description

The 1812ZD226KAT2A is a ceramic capacitor manufactured by KYOCERA AVX.

  • Manufacturer: KYOCERA AVX
  • Product: 1812ZD226KAT2A
  • Capacitance: 22µF
  • Voltage Rating: 10V
  • Tolerance: ±10%
  • Temperature Coefficient: X5R
  • Mounting Type: Surface-Mount
  • Package/Case: 1812 (4532 Metric)
  • Operating Temperature: -55°C to 85°C
