Same model may have multiple batches, images only for reference.

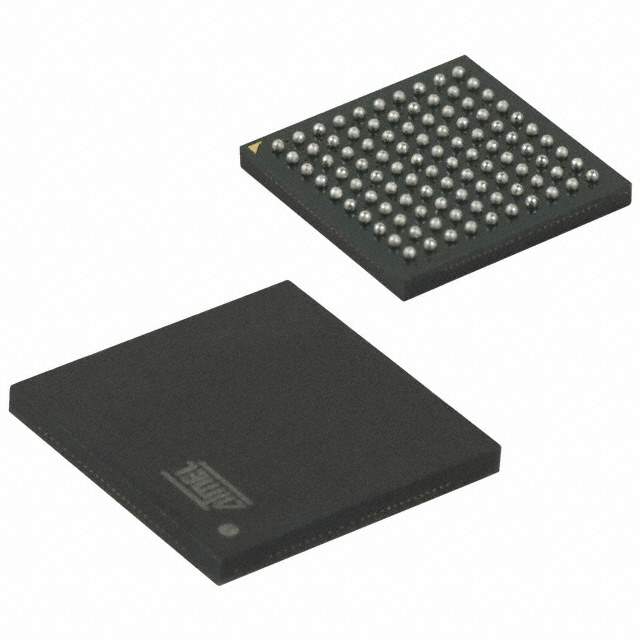

ATSAM3SD8CA-CU Real Image
Same model may have multiple batches, images only for reference.

ATSAM3SD8CA-CU

Part No ATSAM3SD8CA-CU
Manufacturer Atmel
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 512KB FLSH 100TFBGA / ARM® Cortex®-M3 SAM3S Microcontroller IC 32-Bit Single-Core 64MHz 512KB (512K x 8) FLASH 100-TFBGA (9x9)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>Microcontrollers
Manufacturer Atmel
Packaging Bulk
Core Processor ARM® Cortex®-M3
Core Size 32-Bit Single-Core
Speed 64MHz
Connectivity EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Number of I/O 79
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 1.62V ~ 3.6V
Data Converters A/D 15x10/12b; D/A 2x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 100-TFBGA
Supplier Device Package 100-TFBGA (9x9)
Base Product Number ATSAM3S
ECCN 3A991A2
HTSUS 8542.31.0001
Other Part Number 2156-ATSAM3SD8CA-CU,ATMATMATSAM3SD8CA-CU
Standard Package 1
Win Source Part Number 1322836-ATSAM3SD8CA-CU
Ultra Librarian 3D Model Ultra Librarian ATSAM3SD8CA-CU CAD Model

Description

The Atmel ATSAM3SD8CA-CU microcontroller is a 32-bit single-core processor with a core size of ARM Cortex-M3.

  • Speed: 64MHz
  • I/O Ports: 79
  • Program Memory Size: 512KB (512K x 8)
  • Program Memory Type: FLASH
  • RAM Size: 64K x 8
  • Connectivity: EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
  • Voltage Supply: 1.62V ~ 3.6V
  • Operating Temperature: -40°C ~ 85°C
  • Package: 100-TFBGA (9x9)
