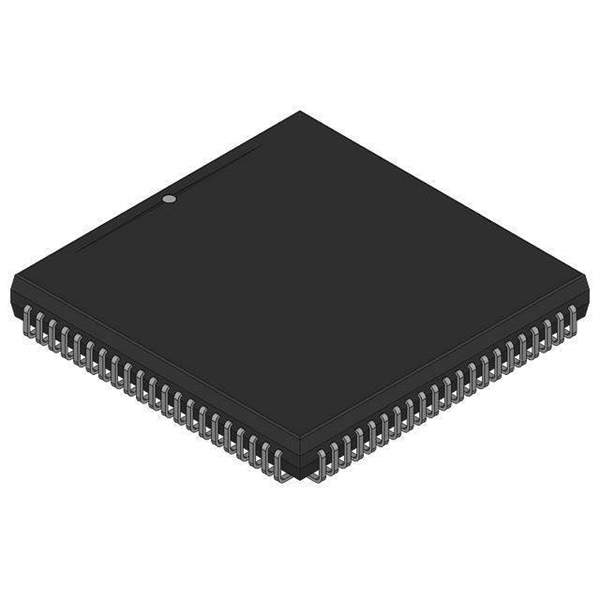

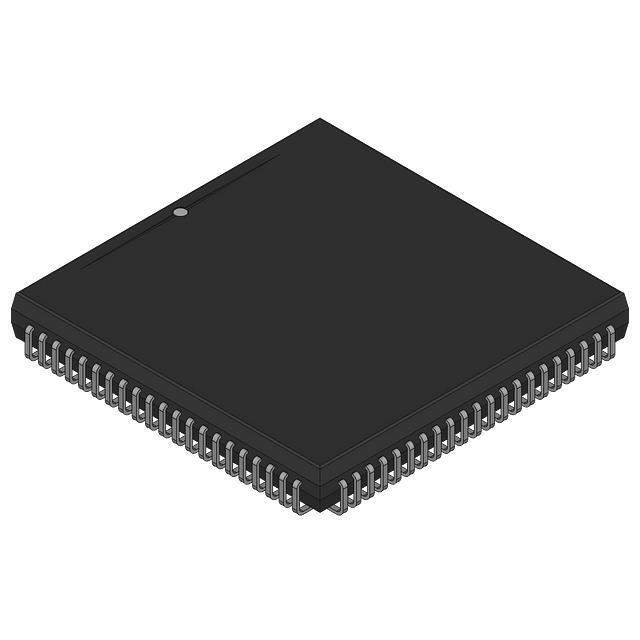

ATF1504AS-10JC84 Real Image
Same model may have multiple batches, images only for reference.

ATF1504AS-10JC84

Part No ATF1504AS-10JC84
Manufacturer Atmel
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description EE PLD, 10NS, 64-CELL, PQCC84 /
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Atmel
Series ATF15xx
Package Tube
Product Status Obsolete
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 10 ns
Voltage Supply - Internal 4.75V ~ 5.25V
Number of Macrocells 64
Number of I/O 64
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting SMD (SMT)
Package / Case 84-LCC (J-Lead)
Supplier Device Package 84-PLCC (29.31x29.31)
RoHS Status RoHS non-compliant
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-ATF1504AS-10JC84-AT,ATMATMATF1504AS-10JC84
Standard Package 15
Win Source Part Number 1046791-ATF1504AS-10JC84
Ultra Librarian 3D Model Ultra Librarian ATF1504AS-10JC84 CAD Model

Description

The ATF1504AS-10JC84 is an In System Programmable (min 10K program/erase cycles) CPLD with 64 I/Os and 64 macrocells.

  • Type: CPLD
  • I/Os: 64
  • Macrocells: 64
  • Programmable Cycles: min 10K program/erase cycles
  • Maximum Delay Time: 10 ns
  • Voltage Supply Range: 4.75V to 5.25V
  • Package/Case: 84-LCC (J-Lead)
  • Supplier Device Package: 84-PLCC (29.31x29.31)
  • Series: ATF15xx
  • Package: Tube
  • Standard Package: 15
  • Alternative Parts: ATF1508ASL-20JC84 and ATF1508ASV-15JU84ATF1504AS10JC84
  • Product Status: Obsolete
  • RoHS Compliance: Non-compliant
  • HTSUS: 8542.39.0001
  • Manufacturer: Atmel
