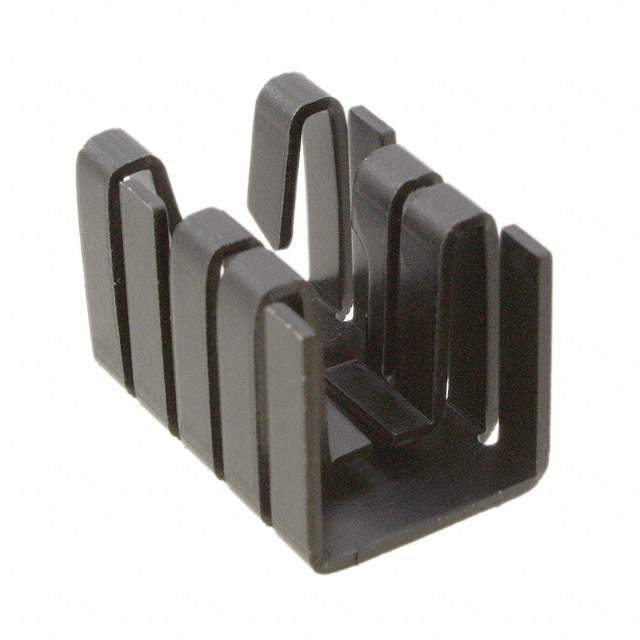

V8508A Real Image
Same model may have multiple batches, images only for reference.

V8508A

Part No V8508A
Manufacturer Assmann WSW Components
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 19X12.80MM / Heat Sink TO-220 Aluminum 3.0W @ 60°C Board Level
Datasheet
V8508A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Assmann WSW Components
Package Bulk
Type Board Level
Package Cooled TO-220
Attachment Method Press Fit
Shape Rectangular, Fins
Length 0.748" (19.00mm)
Width 0.504" (12.80mm)
Fin Height 0.500" (12.70mm)
Power Dissipation @ Temperature Rise 3.0W @ 60°C
Thermal Resistance @ Forced Air Flow 14.00°C/W @ 200 LFM
Material Aluminum
Material Finish Black Anodized
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 1351670-V8508A
Ultra Librarian 3D Model Ultra Librarian V8508A CAD Model

Description

This is a thermal heat sink product from Assmann WSW Components.

  • Win Source Part Number: 1351670-V8508A
  • Category: Fans, Thermal Management - Thermal - Heat Sinks
  • Type: Board Level
  • Packaging: Bulk
  • Length: 0.748" (19.00mm)
  • Width: 0.504" (12.80mm)
  • Shape: Rectangular, Fins
  • Designed For: TO-220 Packages
  • Attachment Method: Press Fit
  • Power Dissipation: 3.0W @ 60°C
  • Thermal Resistance Forced Air Flow: 14.00°C/W @ 200 LFM
  • Fin Height: 0.500" (12.70mm)
  • Material Finish: Black Anodized
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8473.30.5100
