Same model may have multiple batches, images only for reference.

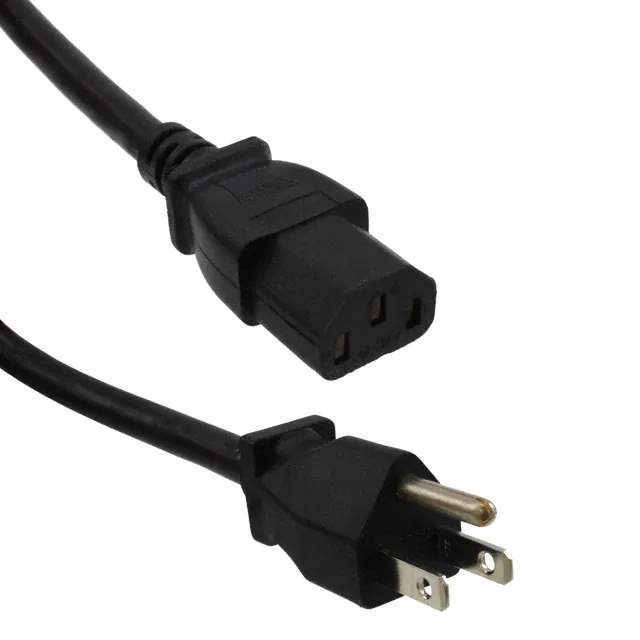

A-PC2302-050028-1 Real Image
Same model may have multiple batches, images only for reference.

A-PC2302-050028-1

Part No A-PC2302-050028-1
Manufacturer Assmann WSW Components
Catalog Power, Line Cables and Extension Cords
Description CRD 18AWG NEMA5-15P - C13 16.4'
Datasheet
A-PC2302-050028-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies - Power, Line Cables and Extension Cords
Mfr Assmann WSW Components
Package Bulk
Product Status Active
Style Male Pins (Blades) to Female Sockets (Slots)
1st Connector NEMA 5-15P
2nd Connector IEC 320-C13
Number of Conductors 3
Cord Type SJT
Wire Gauge 18 AWG
Shielding Unshielded
Length 16.40' (5.00m)
Approval Agency Marking UL
Approved Countries United States
Color Black
Voltage Rating 125V
Current Rating (Amps) 10A
Temperature Range - Operating 60°C
Base Product Number A-PC2302
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9010
Win Source Part Number 1179114-A-PC2302-050028-1
Ultra Librarian 3D Model Ultra Librarian A-PC2302-050028-1 CAD Model

Description

The 1179114-A-PC2302-050028-1 is a power cable assembly used for various applications.

  • Connector Style: Male Pins (Blades) to Female Sockets (Slots)
  • Length: 16.40' (5.00m)
  • Shielding: Unshielded
  • Wire Gauge: 18 AWG
  • Voltage - Rated: 125V
  • Current - Rated: 10A
  • Operating Temperature: Up to 60°C
  • Approvals: United States
  • UL: Yes
  • HTSUS: 8544.42.9010
  • Series: A-PC2302
  • Standard Package: 1
  • Packaging: Bulk
  • Manufacturer: Assmann WSW Components
