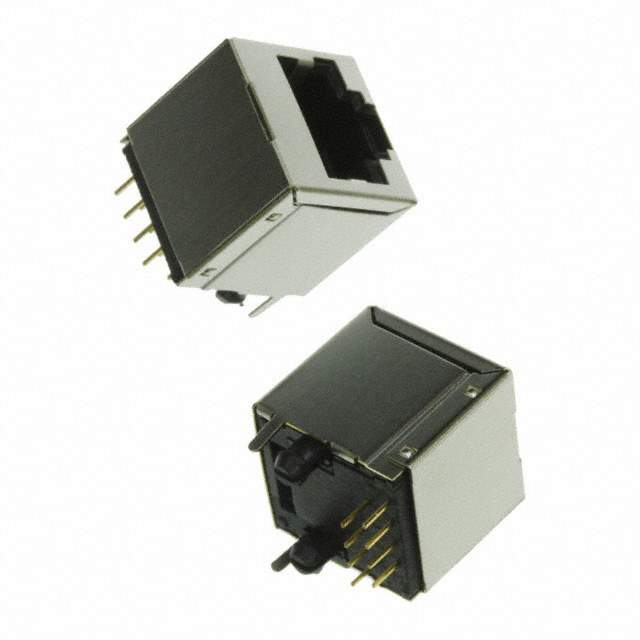

Same model may have multiple batches, images only for reference.

A-2014-2S-4-N-R

Name: A-2014-2S-4-N-R
Brand: Assmann WSW Components
SKU: 1350162
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	A-2014-2S-4-N-R
Manufacturer	Assmann WSW Components
Catalog	Modular Connectors
Description	CONN MOD JACK 8P8C VERT SHIELDED / Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded
Datasheet	A-2014-2S-4-N-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr	Assmann WSW Components
Package	Tray
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	1
Number of Rows	1
Mounting Type	Through Hole
Orientation	Vertical
Termination	Solder
Shielding	Shielded
Features	Board Lock
LED Color	Does Not Contain LED
Tab Direction	User Selectable
Contact Material	Phosphor Bronze
Contact Finish	Gold
Contact Finish Thickness	6.00µin (0.152µm)
Housing Material	Polybutylene Terephthalate (PBT) , Glass Filled
Temperature Range - Operating	-40°C ~ 85°C
Base Product Number	A-2014
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350162-A-2014-2S-4-N-R
Ultra Librarian 3D Model	Ultra Librarian A-2014-2S-4-N-R CAD Model

Alternative Products

Description

The 1350162-A-2014-2S-4-N-R is a modular connector jack from Assmann WSW Components.

Feature: Shielded, Board Lock
Row: One
Termination: Soldering
Contact Finish: Gold
Contact Finish Thickness: 6.00 micrometers
Contact Material: Phosphor Bronze
Housing Material: Polybutylene Terephthalate (PBT), Glass-Filled
Orientation: Vertical
Port: One
LED Color: Not Present
Tab Direction: User-Selectable
Positions/Contacts: 8p8c (RJ45, Ethernet)
Mounting: Through Hole
Operating Temperature Range: -40 to 85 degrees Celsius
ECCN: EAR99
REACH: Unaffected
HTSUS: 8536.69.4040
Packaging: Tray
