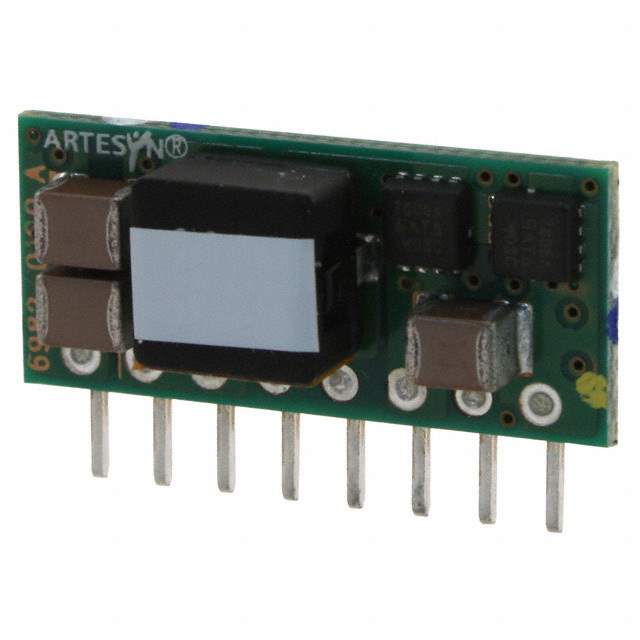

Same model may have multiple batches, images only for reference.

PTV12010WAD

Name: PTV12010WAD
Brand: Artesyn Embedded Technologies
SKU: 284070
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTV12010WAD
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONV DC/DC 12 VIN ADJOUT 8A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Artesyn Embedded Technologies
Standard Package	84
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTV12010
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	1.2 ~ 5.5 V
Current - Output (Max)	8A
Power (Watts) - Manufacture Series	44W
Applications	ITE (Commercial)
Features	Remote On/Off OCP UVLO
Mounting Style	Through Hole
Package	8-SIP Module
Size / Dimension	0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	92%
Power (Watts) - Max	44W
Catalog	PTV12010 Series
Win Source Part Number	085154-PTV12010WAD
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTV12010WAD CAD Model

Alternative Products

Description

The Artesyn Embedded Technologies PTV12010WAD is a non-isolated PoL module that is ideal for power supplies - board mount applications.

Manufacturer: Artesyn Embedded Technologies
Series: PTV12010
Package: 8-SIP module
Operating Temperature: -40°C to 85°C
Features: Remote on/off, overcurrent protection (OCP), and under voltage lockout (UVLO)
Output Current: Maximum of 8A
Input Voltage Range: 10.8V to 13.2V
Output Voltage Range: 1.2V to 5.5V
Power Output: Maximum of 44W
Efficiency: 92%
