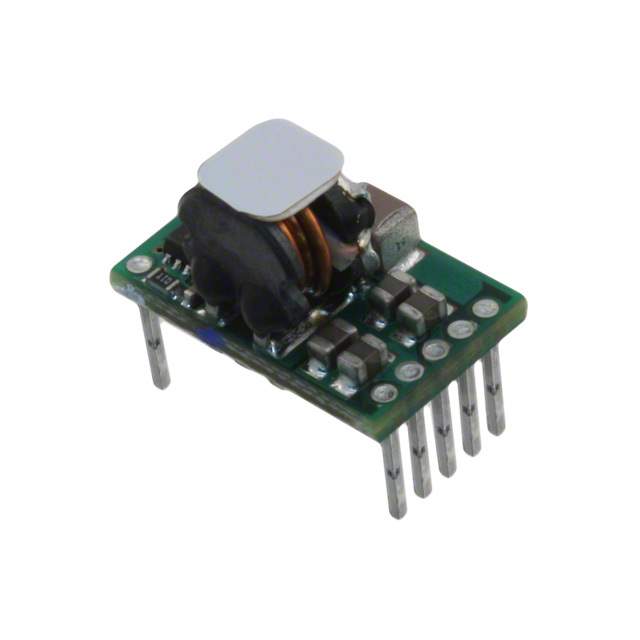

Same model may have multiple batches, images only for reference.

LDO10C-005W05-HJ

Name: LDO10C-005W05-HJ
Brand: Artesyn Embedded Technologies
SKU: 613242
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LDO10C-005W05-HJ
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	Single Output 10 A DC-DC C Class Non-Isolated DC-DC Converter \| DC DC CONVERTER 0.59-5.1V 50W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Artesyn Embedded Technologies
Packaging	Tray
Type	Non-Isolated PoL Module
Voltage - Input (Minimum)	3V
Voltage - Input (Maximum)	13.8V
Voltage - Output 1	0.59 ~ 5.1V
Current - Output (Maximum)	10A
Power (W)	50W
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	94%
Mounting Style	Through Hole
Manufacturer Package	Module
Parts Dimension	0.65" L x 0.41" W x 0.52" H (16.5mm x 10.4mm x 13.1mm)
Control Features	Enable, Active High
Manufacturer Pack Quantity	90
MSL Level	1 (Unlimited)
Win Source Part Number	1195930-LDO10C-005W05-HJ
Manufacturer Homepage	0
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian LDO10C-005W05-HJ CAD Model

Description

The Artesyn Embedded Technologies LDO10C-005W05-HJ is a non-isolated PoL module with a mounting style through hole.

Features: Remote on/off and SCP
Application: ITE (Commercial)
Control Features: Enable, active high
Voltage Output: 0.59V to 5.1V
Efficiency: 94%
Supply and Demand: Limited
Manufacturer Pack Quantity: 90 pieces
MSL Level: 1 (unlimited)
Power: 50W
Voltage Input Range: 3V to 13.8V
Parts Dimension: 0.65" L x 0.41" W x 0.52" H (16.5mm x 10.4mm x 13.1mm)
