Same model may have multiple batches, images only for reference.

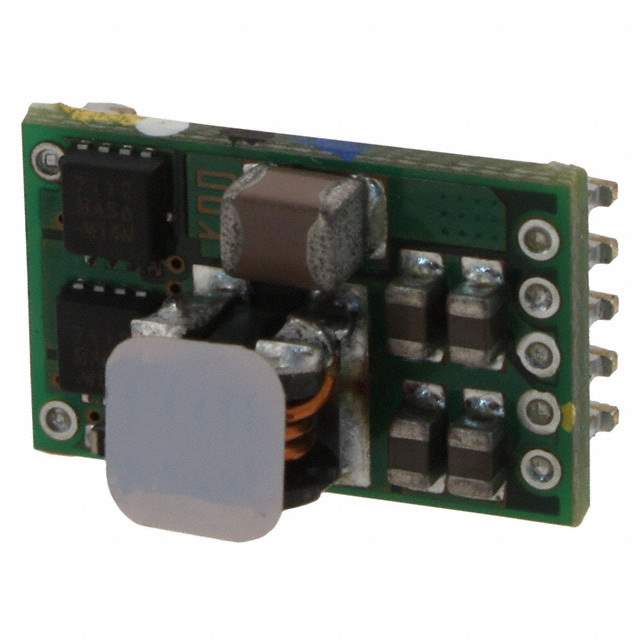

LDO06C-005W05-HJ Real Image
Same model may have multiple batches, images only for reference.

LDO06C-005W05-HJ

Part No LDO06C-005W05-HJ
Manufacturer Artesyn Embedded Technologies
Catalog Power Supplies Board Mount DCDC Converters
Description Single Output 6 A DC-DC C Class Non-Isolated DC/DC Converter
Datasheet
LDO06C-005W05-HJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Artesyn Embedded Technologies
Series LDO06C
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 3V
Voltage Input MAX 13.8V
Voltage - Output 1 0.59 ~ 5.1 V
Current - Output (Maximum) 6A
Power (Watts) 30W
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Operating Temperature Range -40°C ~ 85°C
Efficiency 92%
Mounting Style Through Hole
Package Module
Size 0.65" L x 0.41" W x 0.44" H (16.5mm x 10.4mm x 11.2mm)
Win Source Part Number 754197-LDO06C-005W05-HJ
Popularity Medium
Supply and Demand Status Limited
Family Name LDO06C-005W05
Introduction Date January 14, 2014
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian LDO06C-005W05-HJ CAD Model

Description

The LDO06C-005W05-HJ OEM part is a product of Artesyn Embedded Technologies.

  • Category: Power Supplies - Board Mount
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • RoHS Compliance: Yes
  • Power Output: 30W
  • Efficiency: 92%
  • Output Type: Single
  • Voltage Range: 0.59 ~ 5.1V
  • Maximum Current Output: 6A
  • Mounting Style: Through Hole
  • Size: 0.65" L x 0.41" W x 0.44" H (16.5mm x 10.4mm x 11.2mm)
