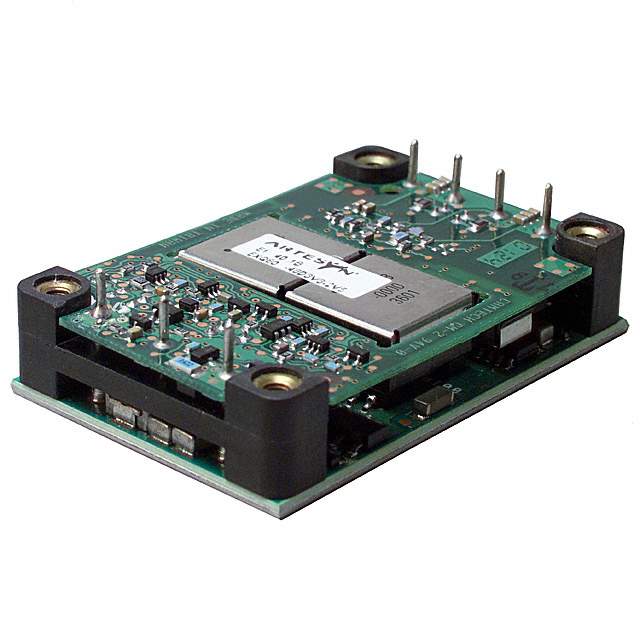

Same model may have multiple batches, images only for reference.

EXQ60-48D3V3-2V5

Name: EXQ60-48D3V3-2V5
Brand: Artesyn Embedded Technologies
SKU: 590297
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EXQ60-48D3V3-2V5
Manufacturer	Artesyn Embedded Technologies
Catalog	Power Supplies Board Mount DCDC Converters
Description	60W High Efficiency DC/DC Converters
Datasheet	EXQ60-48D3V3-2V5 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Artesyn Embedded Technologies
Series	EXQ60
Packaging	Bulk
Part Status	Obsolete(EOL)
Type	Isolated Module
Number of Outputs	2
Input Voltage MIN	33V
Voltage Input MAX	75V
Voltage - Output 1	3.3V
Voltage - Output 2	2.5V
Current - Output (Maximum)	12A, 16A
Power (Watts)	60W
Voltage - Isolation	1.5kV (1500V)
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature Range	-40°C ~ 100°C
Efficiency	90.5%
Mounting Style	Through Hole
Package	7-DIP Module, 1/4 Brick
Size	2.30" L x 1.50" W x 0.50" H (58.4mm x 38.1mm x 12.7mm)
Win Source Part Number	1172985-EXQ60-48D3V3-2V5
Manufacturer Homepage	0
Popularity	Medium
Supply and Demand Status	Limited
Family Name	EXQ60-48D3V3-2V5
Introduction Date	January 14, 2014
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian EXQ60-48D3V3-2V5 CAD Model

Alternative Products

Description

The EXQ60-48D3V3-2V5 is an isolated DC-DC converter module from Artesyn Embedded Technologies.

Power: 60W
Features: Remote On/Off, OCP, OVP, SCP, UVLO
Package: 7-DIP module, 1/4 Brick
Application: ITE (Commercial)
Voltage Isolation: 1.5kV (1500V)
Power Output: 60W
Number of Outputs: Two
Maximum Current Output 1: 12A
Maximum Current Output 2: 16A
Input Voltage Range: 33V to 75V
Output Voltage 1: 3.3V
Output Voltage 2: 2.5V
Efficiency: 90.5%
Mounting Type: Through-Hole
Operating Temperature Range: -40°C to 100°C
Product Type: Power Supplies - Board Mount
