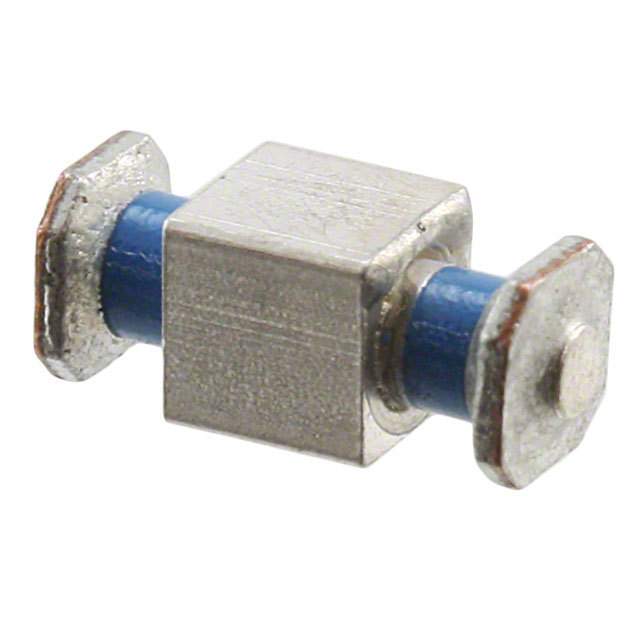

PSM1F-402Z-10T0 API Technologies Corp
Same model may have multiple batches, images only for reference.

PSM1F-402Z-10T0

Part No PSM1F-402Z-10T0
Manufacturer API Technologies Corp
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 4000PF SMD
Datasheet
PSM1F-402Z-10T0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer API Technologies Corp
Packaging Reel - TR
Type Low Pass
Filter Order 3rd
Technology LC (Pi)
Number of Channels 1
Current 10A
Values C = 4000pF
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.315" L x 0.118" W (8.00mm x 3.00mm)
Height 0.118" (3.00mm)
Win Source Part Number 116824-PSM1F-402Z-10T0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PSM1F-402Z-10T0 CAD Model

Description

The 116824-PSM1F-402Z-10T0 from API Technologies Corp is a medium popularity electronic component with a balance supply and demand status.

  • Type: Low pass filter
  • Mounting Technology: SMD (SMT)
  • Filter Type: LC (Pi)
  • Height: 0.118" (3.00mm)
  • Current: 10A
  • C Value: 4000pF
  • Dimension: 0.315" L x 0.118" W (8.00mm x 3.00mm)
  • Temperature Range: -55°C to 125°C
  • Application: Data lines for mobile devices
