Same model may have multiple batches, images only for reference.

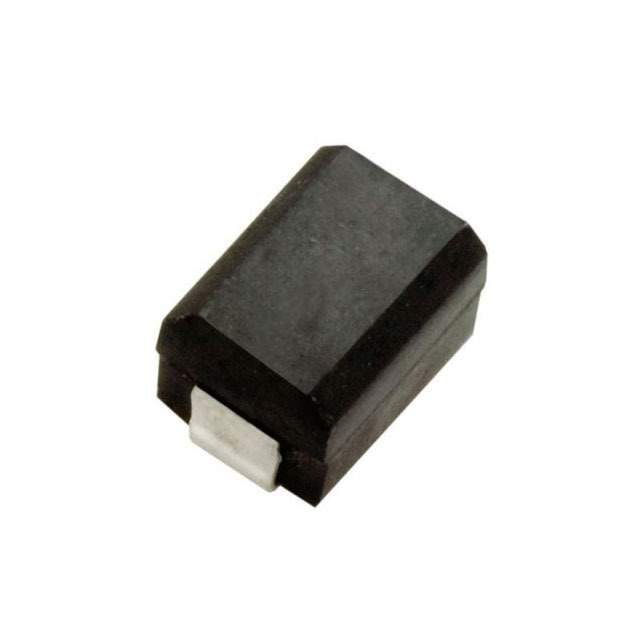

S1812R-223K Real Image
Same model may have multiple batches, images only for reference.

S1812R-223K

Part No S1812R-223K
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 277MA 2.6 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 10 Weeks
Features 22 µH Shielded - Inductor 277 mA 2.6Ohm Max 1812 (4532 Metric)
Manufacturer API Delevan Inc.
Series S1812R
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Package 1812 (4532 Metric)
Case / Package 1812
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number Q7165861TE, S1812R223K, DN7941CT, DN7941DKR, DN7941TR, S1812R-223K TR 500
Quantity per package 500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 892799-S1812R-223K
Ultra Librarian 3D Model Ultra Librarian S1812R-223K CAD Model

Description

The API Delevan Inc. S1812R series inductor is a 22μH shielded inductor with a maximum resistance of 2.6 Ohm and a maximum current rating of 277 mA.

  • Inductance: 22μH
  • Resistance (Max): 2.6 Ohm
  • Current Rating (Max): 277 mA
  • Mounting: Surface-Mount
  • Package: 1812 (4532 Metric)
  • Packaging: Reel of 500 units
  • Operating Temperature: -55°C to 125°C
