Same model may have multiple batches, images only for reference.

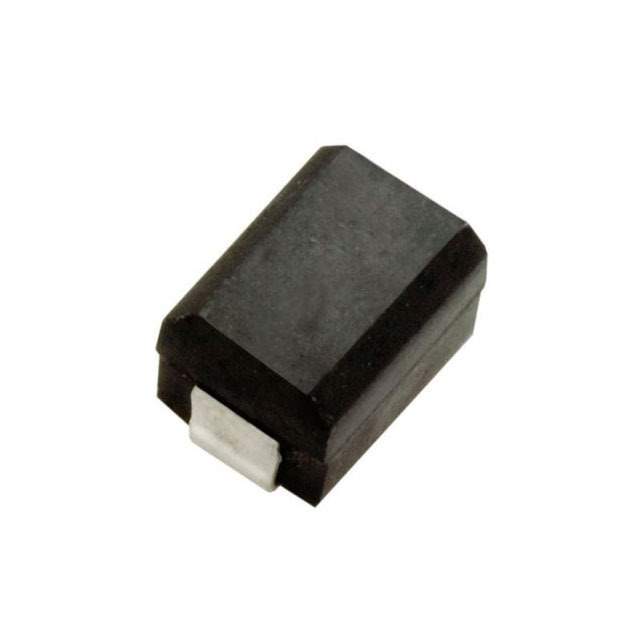

S1812-152J Real Image
Same model may have multiple batches, images only for reference.

S1812-152J

Part No S1812-152J
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 1.5UH 706MA 400 MOHM
Datasheet
S1812-152J Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer API Delevan Inc.
Packaging Reel - TR
Status Active
Material - Core Ferrite
Inductance 1.5μH
Tolerance ±5%
Current Rating 706mA
DC Resistance (DCR) 400 mOhm Max
Q @ Freq 40 @ 7.9MHz
Frequency - Self Resonant 110MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 7.9MHz
Mounting SMD (SMT)
Case / Package 1812 (4532 Metric)
Height - Seated (Max) 0.134" (3.40mm)
Win Source Part Number 1093439-S1812-152J
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian S1812-152J CAD Model

Description

The API Delevan Inc. 424764 is a ferrite core inductor with a current rating of 706mA and an inductance of 1.5μH.

  • Current Rating: 706mA
  • Inductance: 1.5μH
  • Tolerance: ±5%
  • DC Resistance (DCR): 400 mOhm max
  • Height When Seated: 0.134" (3.40mm)
  • Mounting: SMD (SMT) technology
  • Q @ Freq: 40 @ 7.9MHz
  • Frequency - Self-Resonant: 110MHz
  • Category: Inductors, Coils, Chokes
  • Temperature Range: -55°C to 125°C
  • Case/Package: 1812 (4532 Metric)
  • Supplied On: reel - TR
  • Manufacturer: API Delevan Inc.
  • Supply and Demand Status: sufficient
