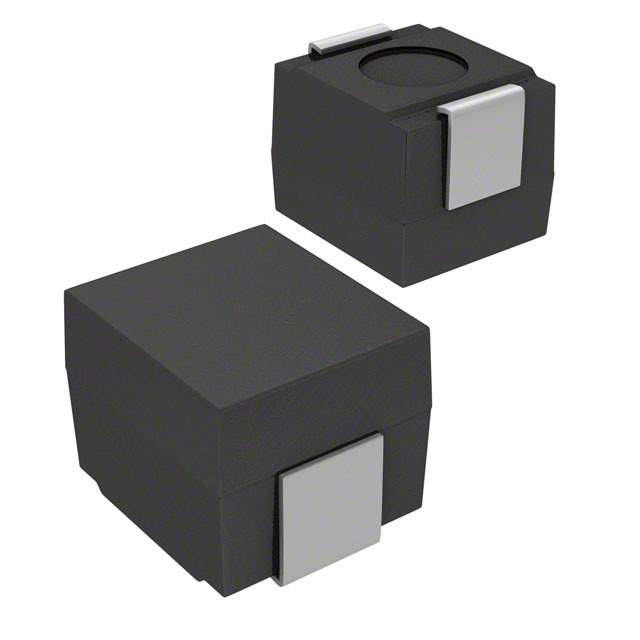

S1008R-331K Real Image
Same model may have multiple batches, images only for reference.

S1008R-331K

Part No S1008R-331K
Manufacturer API Delevan Inc.
Catalog Fixed Inductors
Description FIXED IND 330NH 865MA 150MOHM SM / 330 nH Shielded Inductor 865 mA 150mOhm Max 1008 (2520 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr API Delevan Inc.
Series S1008R
Package Tape & Reel
Material - Core Ferrite
Inductance 330 nH
Tolerance ±10%
Current Rating (Amps) 865 mA
Shielding Shielded
DC Resistance (DCR) 150mOhm Max
Q @ Freq 40 @ 25MHz
Frequency - Self Resonant 293MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 25 MHz
Mounting SMD (SMT)
Package / Case 1008 (2520 Metric)
Supplier Device Package 1008 (2520 Metric)
Dimension 0.115" L x 0.105" W (2.92mm x 2.66mm)
Height - Seated (Max) 0.095" (2.41mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names DN7891TR,DN7891DKR,S1008R-331K TR 500,DN7891CT,S1008R331K
Standard Package 500
Win Source Part Number 1151731-S1008R-331K
Ultra Librarian 3D Model Ultra Librarian S1008R-331K CAD Model

Description

The S1008R series fixed inductor is a high-quality product that comes in a tape and reel package.

  • Product: S1008R series
  • Type: Fixed Inductor
  • Package: Tape and Reel
  • Shielding: Yes
  • Inductance: 330 nH
  • Height (Seated): 0.095" (2.41mm)
  • Standard Package: 500
  • Mounting Type: SMD (SMT)
  • Tolerance: ±10%
  • Material-Core: Ferrite
  • Q@Freq: 40@25MHz
  • Frequency-Self-Resonant: 293MHz
  • Package/Case: 1008 (2520 Metric)
  • Supplier Device Package: 1008 (2520 Metric)
  • Dimension: 0.115" L x 0.105" W (2.92mm x 2.66mm)
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 865 mA
  • Inductance Frequency-Test: 25 MHz
  • REACH Status: REACH unaffected
  • HTSUS: 8504.50.8000
  • Manufacturer: API Delevan Inc.
