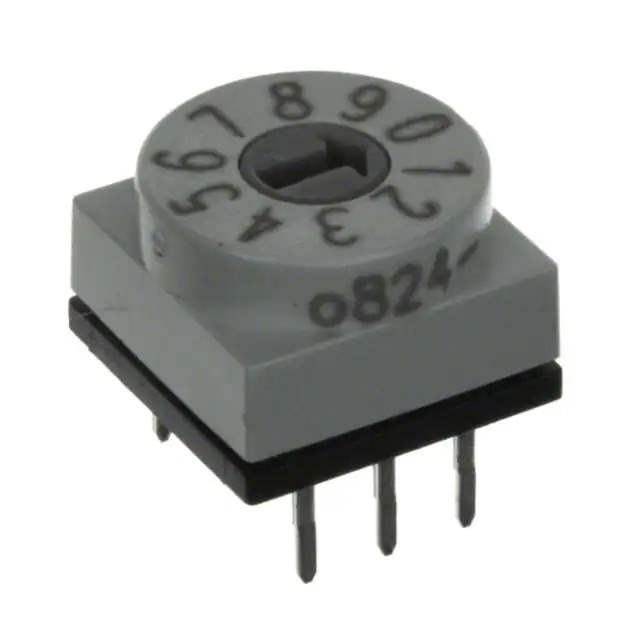

PT65101 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr APEM Inc.
Series PT65
Package Tube
Product Status Active
Circuit BCD
Number of Positions 10
Current Rating (Amps) 150mA
Voltage Rating 24VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Phosphor Bronze
Contact Finish Gold
Height Above Board 0.256" (6.50mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Sealed - Flux Protection
Temperature Range - Operating -20°C ~ 70°C
Body Material Thermoplastic
Length 0.394" (10.00mm)
Mechanical Life 10,000 Cycles
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 890347-PT65101
Ultra Librarian 3D Model Ultra Librarian PT65101 CAD Model

Description

The APEM Inc. PT65 series DIP switch, part number 890347-PT65101, is a 10-position switch with a pitch of 0.100" (2.54mm).

  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Seal: Flux Protection
  • Contact Finish: Gold
  • Material: Thermoplastic
  • Voltage Rating: 24VDC
  • Height Above Board: 0.256" (6.50mm)
  • Length: 0.394" (10.00mm)
  • Circuit: BCD
  • Actuator Type: Rotary
  • Mechanical Life: 10,000 Cycles
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Mounting: Through Hole
  • Temperature Range: -20°C to 70°C
  • Product Status: Active
