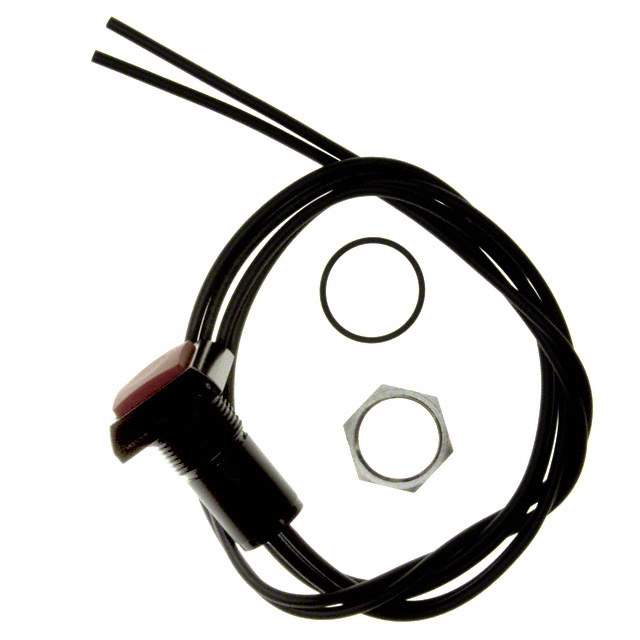

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr APEM Inc.
Series IP
Package Bulk
Mounting Type Panel Mount, Front
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 500mA (AC), 200mA (DC)
Voltage Rating - AC 48 V
Voltage Rating - DC 48 V
Actuator Type Square, Button
Actuator Marking No Marking
Color - Actuator/Cap Red
Termination Style Wire Leads
Ingress Protection IP67 - Dust Tight, Waterproof
Features Tactile Feedback
Panel Cutout Dimensions Circular - 13.60mm Dia
Temperature Range - Operating -40°C ~ 125°C
Electrical Life 500,000 Cycles
Base Product Number IPC3FA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 679-1139
Standard Package 25
Win Source Part Number 1064060-IPC3FAD6
Ultra Librarian 3D Model Ultra Librarian IPC3FAD6 CAD Model

Description

The IPC3FAD6 is a pushbutton switch manufactured by APEM Inc.

  • Category: Switches
  • Standard Package: 25
  • Panel Cutout Dimension: 13.60mm dia
  • Circuit Type: SPST-NO
  • Switch Function: Off-Mom
  • Button Actuator Type: Square
  • Feedback: Tactile
  • Actuator/Cap Color: Red
  • Mounting Type: Panel Mount, Front
  • Operating Temperature Range: -40°C to 125°C
