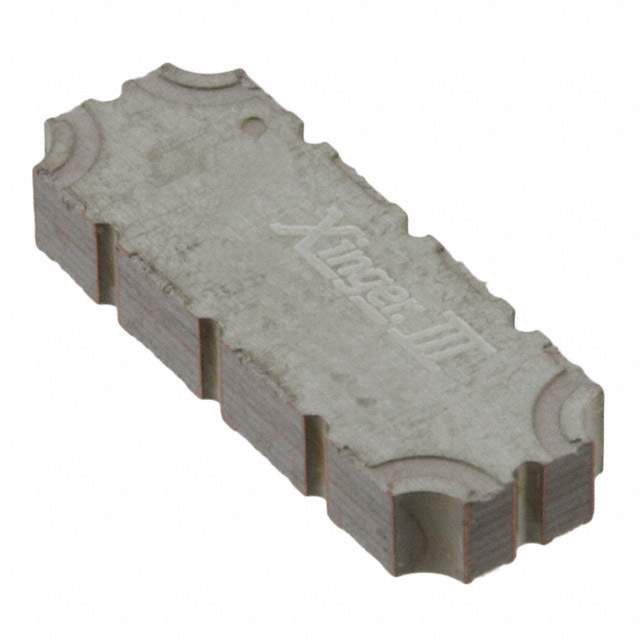

X3C21P2-03S Real Image
Same model may have multiple batches, images only for reference.

X3C21P2-03S

Part No X3C21P2-03S
Manufacturer Anaren
Catalog RF Directional Coupler
Description RF DIR COUPLER 2GHZ-2.3GHZ SMD / RF Directional Coupler General Purpose 2GHz ~ 2.3GHz 3dB 172W 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr TTM Technologies, Inc.
Series Xinger III®
Package Tape & Reel
Coupler Type Standard
Frequency 2GHz ~ 2.3GHz
Coupling Factor 3dB
Applications General Purpose
Insertion Loss 0.22dB
Power - Max 172W
Isolation 25dB
Return Loss 25dB
Package / Case 4-SMD, No Lead
Supplier Device Package SMD
Base Product Number X3C21P2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.79.0000
Other Names 1173-1113-1,X3C21P203S,1173-1113-6,1173-1113-2
Standard Package 2,000
Win Source Part Number 995463-X3C21P2-03S
Ultra Librarian 3D Model Ultra Librarian X3C21P2-03S CAD Model

Description

The X3C21P2-03S is an RF directional coupler that belongs to the Xinger III series.

  • Package: Tape and Reel
  • Application: General Purpose
  • Standard Package: 2,000 Pieces
  • Maximum Power: 172W
  • Coupling Factor: 3dB
  • Insertion Loss: 0.22dB
  • Isolation: 25dB
  • Return Loss: 25dB
  • Frequency Range: 2GHz ~ 2.3GHz
  • Package/Case: 4-SMD, No Lead
  • Supplier Device Package: SMD
