The LTC6256IKC from Analog Devices Inc. is a high-performance, rail-to-rail operational amplifier that delivers exceptional accuracy and speed while maintaining a low power profile. This op-amp is designed to cater to a wide array of applications, including active filters, medical instrumentation, and portable signal conditioning systems. Its compact form factor and robust feature set make it an ideal choice for engineers looking to optimize their designs for both performance and power efficiency.

Key Features

• High-Speed Performance: With a gain bandwidth product of 6.5MHz and a slew rate of 1.8V/μs, the LTC6256IKC facilitates fast signal processing, making it suitable for high-speed applications.
• Low Power Consumption: The device operates with a supply current of just 650μA, which is beneficial for battery-powered devices and energy-sensitive applications.
• Rail-to-Rail Output: The operational amplifier provides rail-to-rail output swing, which maximizes the dynamic range within the given supply voltage. This feature is particularly useful in single-supply operations and low-voltage applications.
• Wide Supply Voltage Range: It can operate over a wide supply voltage range from 2.5V to 5.25V, allowing for flexible design options across various power environments.
• Low Offset Voltage: The LTC6256IKC boasts a low input offset voltage, which enhances overall system accuracy.
• CMOS Input: CMOS input stage ensures low input bias currents, which is critical for precision applications.

Package and Temperature Range

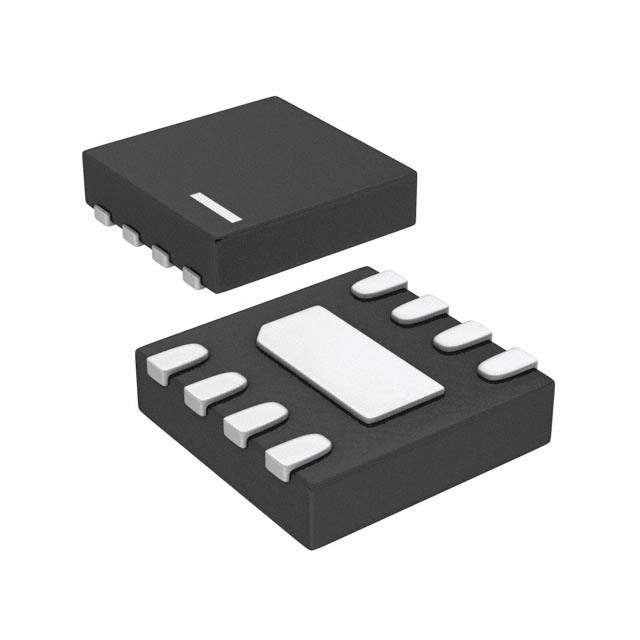

The LTC6256IKC is available in a compact 2mm x 2mm DFN package, which is ideal for space-constrained applications. Additionally, it is specified for the extended industrial temperature range of -40°C to 125°C, ensuring reliable performance across various environmental conditions.

Applications

• Active Filters
• Medical Instrumentation
• Portable Signal Conditioning
• Data Acquisition Systems
• Driving Analog-to-Digital Converters (ADCs)

In summary, the LTC6256IKC from Analog Devices Inc. is a versatile, efficient, and reliable operational amplifier that meets the needs of modern electronic systems. Its balance of speed, power, and precision makes it an excellent choice for designers looking to enhance their product's performance.
