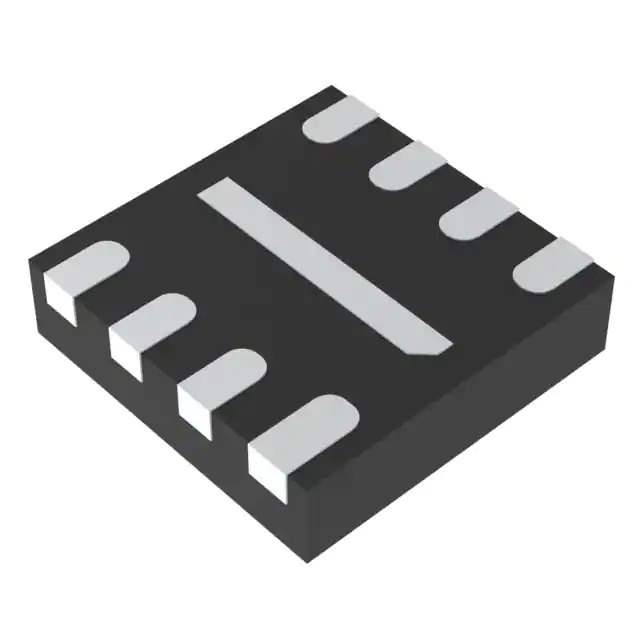

Analog Devices LTC5596HDC High Performance I/Q Demodulator

The LTC5596HDC from Analog Devices Inc. is a state-of-the-art I/Q demodulator that brings a new level of performance and integration to RF and microwave applications. Designed for demanding environments, this component is ideal for wireless infrastructure, point-to-point microwave, military, and space applications, offering exceptional linearity and noise performance.

Key Features:

• Frequency Range: The LTC5596HDC operates over a broad frequency range, making it versatile for various applications. This demodulator can handle RF and LO frequencies from 300MHz to 9GHz, allowing for flexible use in multiple communication bands.
• High Linearity: With an IIP3 (Input Third-Order Intercept) of 25.7dBm at 900MHz, this demodulator ensures excellent linearity, minimizing distortion and enabling the reception of weak signals even in the presence of strong interferers.
• Low Noise Figure: The LTC5596HDC maintains a low noise figure of 10.6dB at 900MHz, which contributes to superior signal-to-noise ratio (SNR), enhancing the overall system sensitivity and performance.
• Integrated LO Buffer: An integrated LO buffer with a wide input power range simplifies the design by reducing the need for external components, thus saving board space and system cost.
• High Port Isolation: The device features excellent port-to-port isolation, which minimizes crosstalk and potential performance degradation, ensuring signal integrity.

Product Specifications:

With its robust design and high-quality performance, the LTC5596HDC is an excellent choice for engineers looking to enhance their RF and microwave systems. Analog Devices Inc. continues to push the boundaries of technology, providing innovative solutions that address the complex challenges of modern communication systems.
