Analog Devices Inc. LTC5592IUH#TRPBF Overview

The LTC5592IUH#TRPBF from Analog Devices Inc. is a high-performance, passive double-balanced mixer that provides RF, LO, and IF ports designed to support a broad range of 3G and 4G wireless applications. This versatile component is ideal for applications requiring a high dynamic range and excellent linearity, such as cellular base stations, repeaters, and wireless infrastructure.

Constructed with an advanced silicon design, the LTC5592IUH#TRPBF offers a wide frequency range, with the RF and LO ports operating from 600MHz to 4GHz, ensuring compatibility with a variety of communication standards. The IF range is from 30MHz to 2GHz, allowing for flexibility in signal processing and modulation schemes.

Key Features

• Frequency Range: The mixer supports an RF/LO frequency from 600MHz to 4GHz and an IF frequency from 30MHz to 2GHz, making it suitable for a wide array of wireless applications.
• Conversion Gain: It typically provides a conversion gain of 2.4dB, enhancing signal strength without the need for external amplification.
• Linearity: With an Input IP3 of 24.4dBm at 900MHz, the device ensures high linearity, minimizing distortion in complex signal environments.
• LO Drive Level: The mixer operates with an LO drive level as low as 0dBm, reducing power requirements for the local oscillator signal.

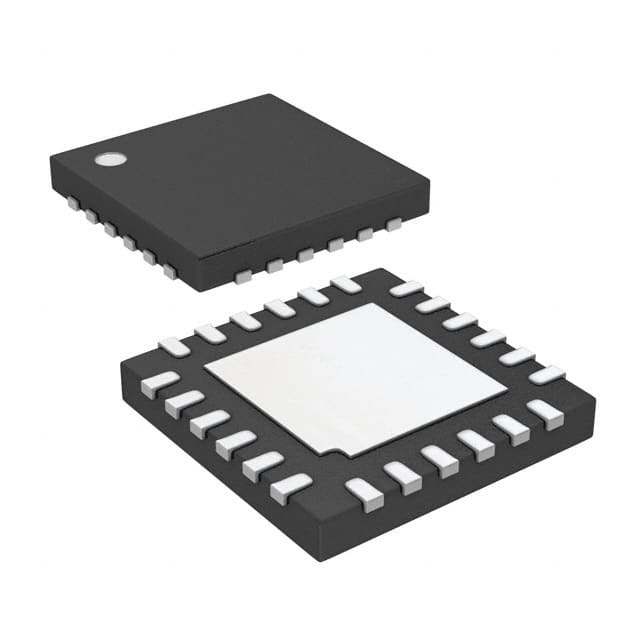

• Package: It comes in a compact 4mm x 4mm QFN package, which is ideal for space-constrained applications.
• Operating Temperature: The device is rated for operation over the industrial temperature range of -40°C to 85°C, ensuring reliable performance in a variety of environmental conditions.

Applications

• Cellular Base Stations
• Wireless Repeaters
• Point to Point Infrastructure
• Software Defined Radios (SDR)
• RFID Readers
• Satellite Terminals

The LTC5592IUH#TRPBF is a testament to Analog Devices Inc.'s commitment to providing high-quality, reliable components that push the boundaries of wireless communication technology. With its robust design and versatile functionality, this mixer is set to play a pivotal role in the next generation of wireless infrastructure.
