Analog Devices Inc. LTC5552IUDB#TRPBF RF Mixer

The LTC5552IUDB#TRPBF from Analog Devices Inc. is a high-performance, double-balanced mixer that offers a wide frequency range and excellent linearity, making it an ideal choice for RF and IF applications in communication systems. This RF mixer is capable of operating over a frequency range of 3GHz to 20GHz at the RF and LO ports, with an IF range from DC to 6GHz, enabling it to support a broad array of frequencies for diverse applications.

One of the key features of the LTC5552IUDB#TRPBF is its active mixer design, which provides high linearity with an IIP3 (Input Third-Order Intercept Point) of 24.4dBm at 14GHz. This high linearity ensures low distortion and better signal quality, which is crucial for maintaining the integrity of the signal in complex modulation schemes used in modern communication systems.

The mixer also boasts a conversion gain of 2.4dB, which helps in maintaining signal strength without the need for additional amplification stages. This conversion gain, combined with its low LO drive level requirement of 0dBm, simplifies system design and reduces power consumption. Furthermore, the device features an integrated LO buffer, which eliminates the need for an external LO amplifier, thus saving board space and additional component costs.

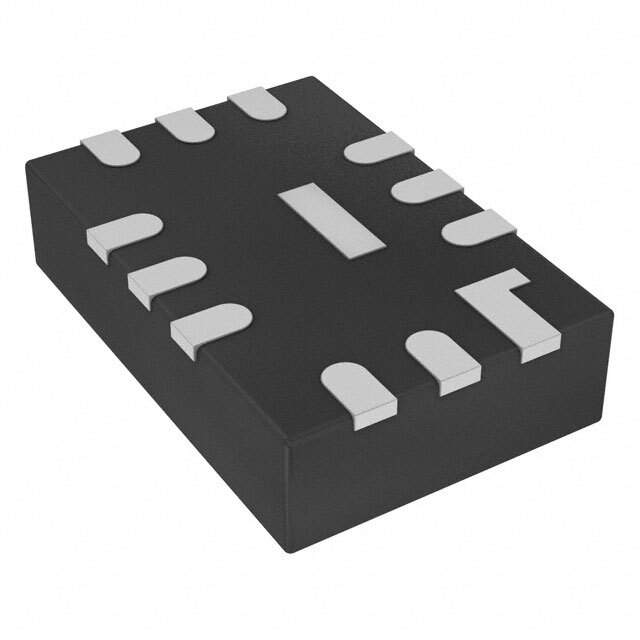

With an RF input power level of up to 0dBm and a wide operating temperature range of -40°C to 105°C, the LTC5552IUDB#TRPBF is designed to withstand harsh environments and demanding applications. The product comes in a compact, 12-lead 3mm x 2mm DFN package with an exposed paddle for enhanced thermal performance.

For ease of integration into complex systems, the LTC5552IUDB#TRPBF also includes an integrated IF balun that simplifies the interface to differential IF amplifiers and ADCs. This feature streamlines the design process, allowing for quicker development and deployment of RF systems.

Overall, the LTC5552IUDB#TRPBF from Analog Devices Inc. is a versatile and reliable choice for designers looking to enhance the performance of their RF and microwave communication systems. Its wide frequency range, high linearity, and integration features make it a valuable component in a variety of applications, including wireless infrastructure, satellite communications, and radar systems.
