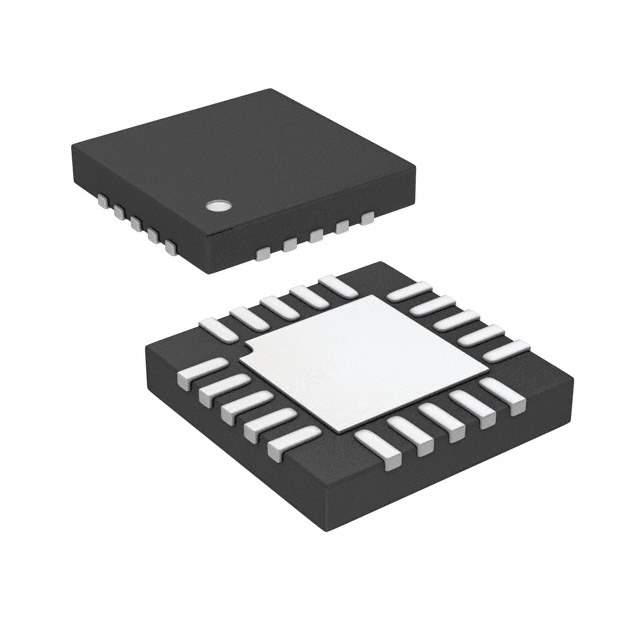

The LTC5543IUH#PBF from Analog Devices Inc. is a high-performance, passive mixer with an integrated RF balun that operates within a wide frequency range. Designed for demanding RF applications, this mixer provides excellent linearity and noise performance, making it suitable for a variety of wireless communications systems.

Key Features

• Wide Frequency Range: The LTC5543IUH#PBF is designed to operate over a broad frequency range, supporting RF and LO frequencies from 2GHz to 14GHz, which makes it versatile for multiple RF applications.
• Integrated RF Balun: The mixer includes an integrated balun that simplifies the design and reduces external component count, while also providing improved performance through balanced signal processing.
• High Linearity: With its high linearity, this mixer is capable of handling high signal levels without significant distortion, which is critical for maintaining signal integrity in communication systems.
• Low Noise Figure: The LTC5543IUH#PBF boasts a low noise figure, which minimizes the addition of noise to the signal chain, thereby enhancing the overall signal-to-noise ratio of the system.
• Lead-Free and RoHS Compliant: The product adheres to environmental standards, being both lead-free and compliant with the Restriction of Hazardous Substances (RoHS) directive.

Applications

The LTC5543IUH#PBF is ideal for use in a variety of applications, including:

• Wireless Infrastructure
• Point-to-Point and Point-to-Multipoint Radios
• Test Equipment and Sensors
• Satellite Communications
• RFID and Radar Systems

Product Specifications

Overall, the LTC5543IUH#PBF is a robust and reliable choice for designers looking to enhance their RF systems with a mixer that offers excellent performance across a wide range of operating conditions.
