LTC2865IDE#PBF - High-Speed Transceiver from Analog Devices Inc.

The LTC2865IDE#PBF is a robust, high-speed transceiver from Analog Devices Inc., designed to provide reliable communication in harsh environments. This transceiver is a part of the LTC2865 series and is specifically engineered to facilitate bidirectional data communication on a single differential pair. It is a versatile component that operates in compliance with the RS485 and RS422 standards, making it an ideal choice for industrial, networking, and telecommunications applications.

The device features a differential driver and receiver, which allows for half-duplex communication with data rates up to 20Mbps. It is characterized by its extended common-mode range of -7V to +12V, making it resilient to ground loop voltage differences and common-mode noise, which are prevalent issues in industrial settings.

The LTC2865IDE#PBF is distinguished by its integrated receiver fail-safe feature, which ensures a high logic level output if the inputs are unconnected or shorted. This fail-safe mechanism enhances the reliability of the communication system by preventing false data generation when the bus is idle or disconnected.

Additionally, the device offers an adjustable slew rate, which can be configured to optimize the trade-off between data rates and signal integrity. This function allows for reduced EMI and reflections, making the transceiver suitable for long cable runs and noisy environments.

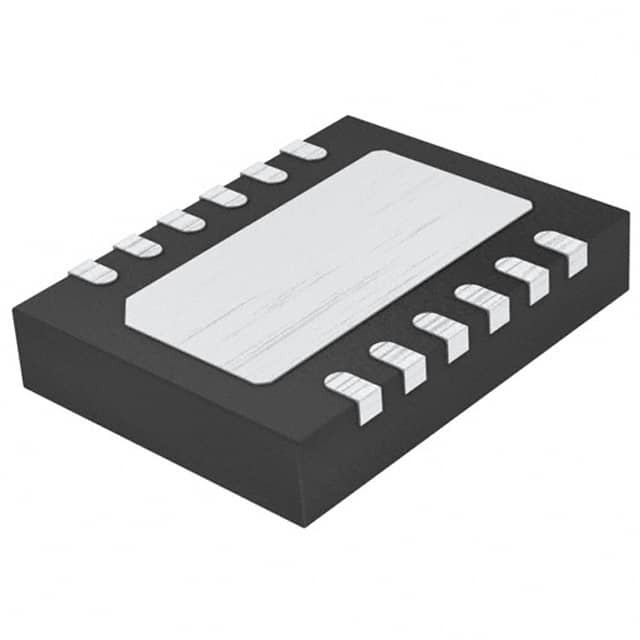

The LTC2865IDE#PBF is designed with thermal shutdown and current-limiting features to protect against fault conditions. It operates over a wide temperature range of -40°C to +85°C, ensuring stable performance in extreme conditions. The transceiver comes in a compact 14-lead DFN package, which is ideal for space-constrained applications.

Furthermore, the LTC2865IDE#PBF supports a wide supply voltage range from 3V to 5.5V, which provides flexibility in system design and ensures compatibility with a variety of logic families. With its robust design and advanced features, the LTC2865IDE#PBF transceiver from Analog Devices Inc. is a reliable solution for high-speed data communication in challenging environments.

For more information about the LTC2865IDE#PBF, including detailed specifications, application notes, and support documentation, visit the Analog Devices Inc. website or contact their technical support team.
