The LTC2383HMS-16#PBF is a high-performance, 16-bit, 2Msps successive approximation register (SAR) analog-to-digital converter (ADC) from Analog Devices Inc. This precision ADC offers a perfect blend of speed, accuracy, and power efficiency, making it an ideal choice for a wide range of applications including medical imaging, industrial process control, and high-speed data acquisition systems.

Key Features:

• Resolution: 16-bit resolution provides high precision for demanding applications.
• Sampling Rate: Fast 2Msps sampling rate ensures timely data conversion for real-time applications.
• No Latency: Zero-latency operation allows for accurate and instant data acquisition, essential for closed-loop control systems.
• Low Power: Optimized for power-sensitive applications, the LTC2383HMS-16#PBF requires only 21mW at the full 2Msps rate.
• Input Range: The device features a wide input range, accommodating versatile signal amplitudes.
• Interface: It offers a user-friendly SPI-compatible serial interface for easy integration into digital systems.

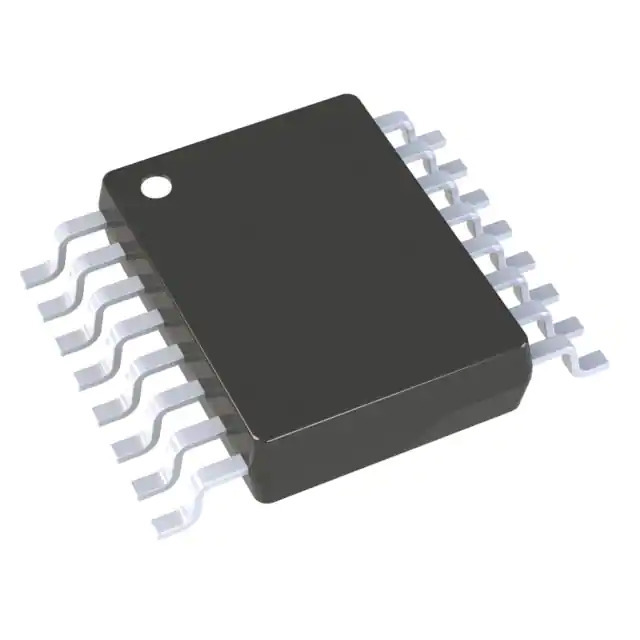

• Package: Housed in a compact MSOP-16 package, it is suitable for space-constrained applications.

Performance Advantages:

The LTC2383HMS-16#PBF boasts exceptional performance with its no missing codes at 16-bit and an impressive signal-to-noise ratio (SNR). The device's differential inputs offer a robust noise immunity, critical for high-precision measurements. Additionally, the ADC's digital filter reduces noise and improves the signal integrity, which is crucial for achieving accurate readings in noisy environments.

Applications:

• Medical Imaging Systems
• Industrial Process Control
• High-speed Data Acquisition
• Instrumentation
• Automated Test Equipment (ATE)

The LTC2383HMS-16#PBF from Analog Devices Inc. represents a sophisticated blend of advanced technology and design efficiency, delivering a superior ADC solution for professionals seeking top-tier performance in their electronic systems.
