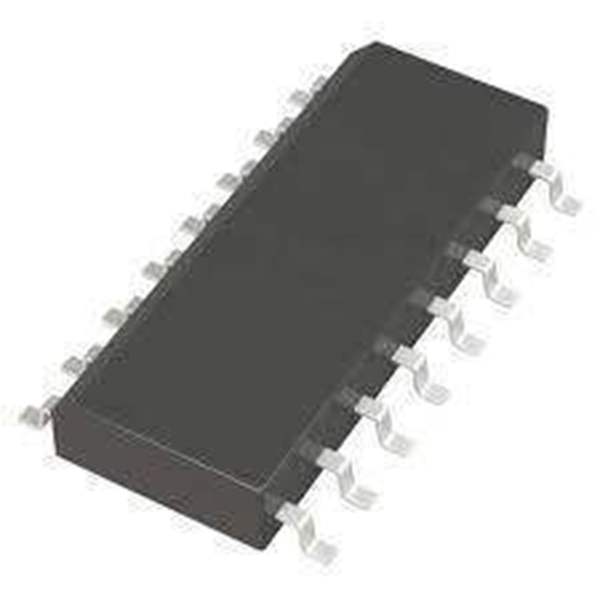

Analog Devices Inc. presents the LTC1689IS#TRPBF, a high-speed, low-power, quad RS485/RS422 differential line driver that is designed to meet the rigorous specifications of extended industrial applications. This robust driver is housed in a narrow 16-lead SOIC package, offering a compact solution for systems that require reliable high-speed data communication over long distances or in noisy environments.

Key Features

• High-Speed Operation: The LTC1689IS#TRPBF is capable of transmitting data at speeds up to 10Mbps, making it suitable for high-speed serial communication protocols.
• Low Power Consumption: Efficiency is at the core of this device, with low quiescent current ensuring minimal power draw when the driver is in idle mode.
• Thermal Protection: It includes thermal shutdown protection, which prevents damage to the device in extreme temperature conditions.
• Enhanced ESD Protection: The integrated electrostatic discharge (ESD) protection safeguards the device against sudden voltage spikes, enhancing its reliability and lifespan.
• Fail-Safe Receiver: Even if the inputs are left floating or disconnected, the receiver ensures a defined logic-high output, thus preventing data corruption.

Applications

The LTC1689IS#TRPBF is ideal for a range of applications that demand high-speed data transfer and robust performance, including:

• Networked Industrial Control Systems
• Factory Automation
• Telecommunications Equipment
• Professional A/V Equipment
• Automotive Infotainment and Telematics

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the LTC1689IS#TRPBF is no exception. This product is manufactured to the highest standards, ensuring consistent performance and longevity in the field. With its advanced features and robust design, the LTC1689IS#TRPBF is a superior choice for designers looking to implement reliable high-speed data communication in their systems.
