The HMC646LP2E, from Analog Devices Inc., stands as a testament to the company's commitment to providing state-of-the-art RF (Radio Frequency) and microwave components for a variety of applications. This product is a GaAs pHEMT MMIC (Gallium Arsenide pseudomorphic High Electron Mobility Transistor Monolithic Microwave Integrated Circuit) Low Noise Amplifier (LNA) designed to offer exceptional performance in terms of noise figure and gain.

Key Features

• Frequency Range: The HMC646LP2E operates over a broad frequency range, making it versatile for various applications including point-to-point radios, VSAT, military & space, and test instrumentation.
• Low Noise Figure: With an impressive low noise figure, this component ensures minimal added noise to the system, which is critical for high-performance receivers.
• High Gain: The device provides high gain, which amplifies weak signals to a level that can be further processed without significant degradation of the signal-to-noise ratio.
• Power-down Capability: It includes a power-down feature that allows the LNA to be turned off when not in use, saving power and prolonging the life of the device.

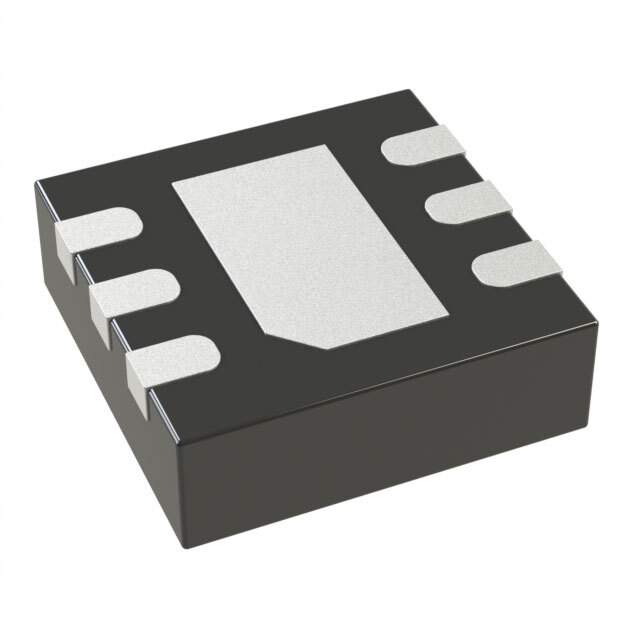

• Package: The HMC646LP2E is offered in a compact 2x2 mm QFN package, suitable for space-constrained applications while still delivering robust performance.

Applications

The versatility of the HMC646LP2E Low Noise Amplifier makes it an ideal choice for various high-frequency applications. Its ability to provide excellent noise performance and gain while maintaining a small footprint allows designers to use it in sophisticated communication systems, radar systems, and satellite communications where reliability and performance are crucial.

Technical Specifications

For more detailed information about the HMC646LP2E, including electrical characteristics, pin configurations, and application circuits, please refer to the official datasheet provided by Analog Devices Inc.
