Analog Devices Inc. presents the HMC539LP3TR, an exemplary component within their extensive range of RF and microwave products. This high-performance, passive double-balanced mixer is designed to cater to the demanding requirements of modern wireless applications, such as point-to-point radios, satellite communications, and broadband systems.

Key Features

• Frequency Range: The HMC539LP3TR operates over a wide frequency range, supporting IF frequencies from DC to 4 GHz, LO frequencies from 6 to 16 GHz, and RF frequencies from 6 to 14 GHz. This broad range ensures versatility across various applications.
• Conversion Loss: With a typical conversion loss of 9 dB, this mixer maintains excellent signal integrity, translating to reliable performance and reduced signal distortion.
• LO/RF Isolation: The device boasts an impressive LO/RF isolation of 45 dB, minimizing leakage and crosstalk between the local oscillator and RF signal paths.

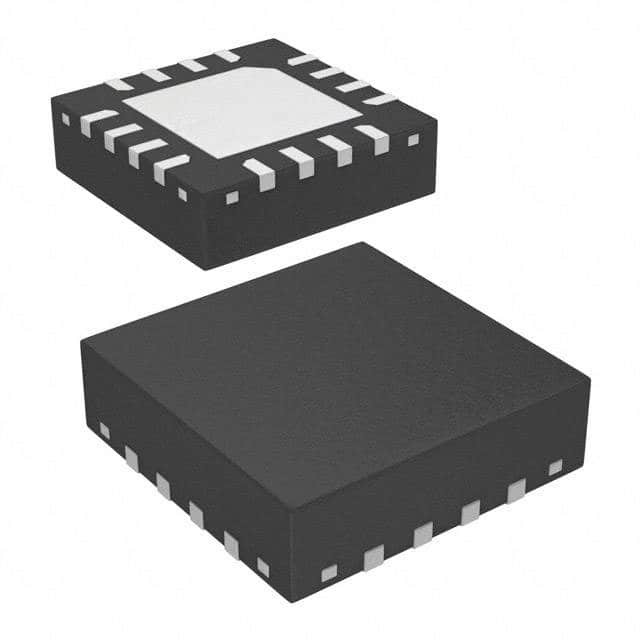

• Package: Housed in a compact 3x3 mm QFN package, the HMC539LP3TR is designed for space-constrained applications, providing high functionality in a small footprint.
• Integrated LO Buffer: It features an integrated LO buffer amplifier, which simplifies design complexity by reducing the need for external components.

Applications

The HMC539LP3TR is ideal for a variety of applications that require high-quality signal mixing capabilities. Its robust design and high isolation make it suitable for:

• Point-to-point and point-to-multipoint radios
• Satellite communication systems
• Test equipment and sensors
• Wireless infrastructure

Quality and Reliability

Analog Devices Inc. is known for their commitment to quality and reliability, and the HMC539LP3TR is no exception. It is manufactured to the highest standards, ensuring consistent performance and longevity in the field. With its robust construction and proven design, the HMC539LP3TR is a reliable choice for engineers and designers seeking a high-performance mixing solution.
