Analog Devices Inc. HMC524ALC3BTR RF Mixer

The HMC524ALC3BTR from Analog Devices Inc. is a high-performance, double-balanced mixer designed to provide exceptional RF and IF frequency mixing solutions. This device is part of Analog Devices' Hittite Microwave Products, renowned for their precision and quality in signal processing components. The HMC524ALC3BTR is an ideal choice for a wide range of applications including wireless infrastructure, test and measurement equipment, and military systems.

This RF mixer is capable of operating over a wide frequency range, which makes it incredibly versatile for various RF applications. The RF and LO frequency ranges from 6 GHz to 16 GHz, while the IF frequency covers DC to 3.5 GHz, providing a broad spectrum of mixing capabilities. The HMC524ALC3BTR is designed to handle a wide range of LO drive levels, which allows for flexibility in system design and optimization.

The mixer's conversion loss is typically 9 dB, which ensures efficient signal processing with minimal loss, and it boasts an excellent LO to RF isolation of 25 dB, which helps to minimize interference and maintain signal integrity. The input IP3 is a robust 21 dBm, providing good linearity and enabling the mixer to perform well even in environments with high signal levels.

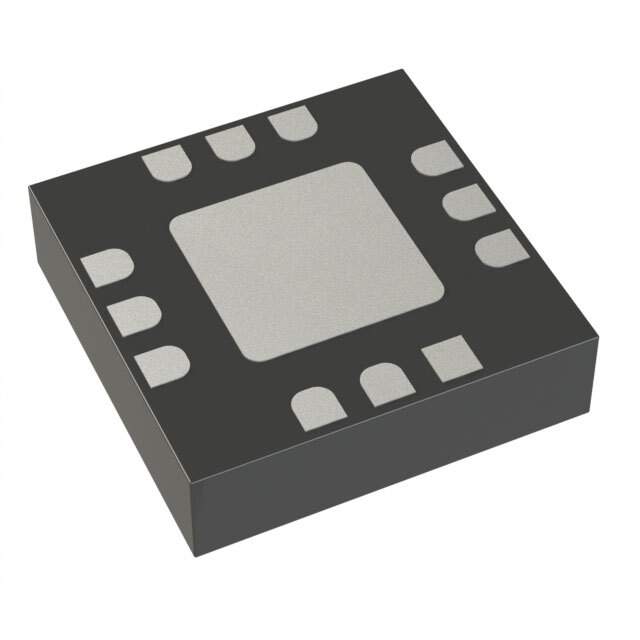

One of the key features of the HMC524ALC3BTR is its compact form factor. Packaged in a 3x3 mm QFN package, it is designed for space-constrained applications without compromising on performance. This small footprint is particularly beneficial in densely populated PCBs where space is at a premium.

For ease of integration into various systems, the HMC524ALC3BTR also offers a single positive supply voltage, simplifying power supply design. It is also RoHS compliant and available in tape and reel packaging, which facilitates large-scale manufacturing and ensures compliance with environmental regulations.

In summary, the HMC524ALC3BTR from Analog Devices Inc. is a top-tier RF mixer that combines wide frequency range, high performance, and compact design, making it a valuable component for engineers looking to create sophisticated RF systems with high reliability and efficiency.
