Analog Devices Inc. HMC274QS16ETR: A High-Performance MMIC SP4T Switch

The HMC274QS16ETR from Analog Devices Inc. is a high-quality Monolithic Microwave Integrated Circuit (MMIC) Single-Pole Four-Throw (SP4T) switch designed for a wide range of RF and microwave applications. This versatile component is ideal for use in telecommunications, test equipment, and military systems due to its exceptional performance across a broad frequency range.

Key Features

• Frequency Range: The HMC274QS16ETR operates effectively over a wide frequency range from DC to 3.5 GHz, making it suitable for various applications, including but not limited to, cellular infrastructure, wireless communications, and broadband systems.
• High Isolation: With high isolation levels of up to 47 dB at 2 GHz, this switch ensures minimal crosstalk between channels, providing clean and reliable signal routing.
• Low Insertion Loss: The low insertion loss of typically 1.5 dB at 2 GHz enhances overall system performance by preserving signal integrity and reducing power loss.
• Non-Reflective Design: The non-reflective nature of the HMC274QS16ETR minimizes signal reflections, which is critical in maintaining the quality of high-speed digital and analog signals.
• High Linearity: Exhibiting an Input IP3 of +50 dBm, the switch offers excellent linearity, ensuring minimal distortion in complex signal environments.
• Fast Switching Speed: A fast switching speed of 10 ns enables rapid signal routing, which is essential for time-sensitive applications such as phased array radars and electronic warfare.

Package and Quality

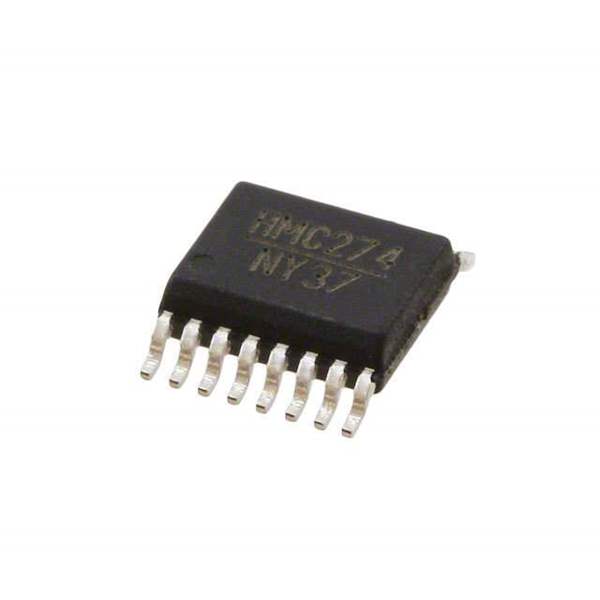

The HMC274QS16ETR is housed in a compact QSOP-16 package, which is surface-mountable and suitable for high-density PCB designs. Its small footprint allows for efficient use of board space without compromising on performance. Additionally, the product is available in tape and reel packaging, facilitating automated assembly processes and contributing to high-volume production efficiency.

Conclusion

Analog Devices Inc.'s HMC274QS16ETR is a testament to their commitment to delivering high-performance RF components. With its wide operating frequency range, high isolation, low insertion loss, and fast switching capabilities, this MMIC SP4T switch stands out as a reliable choice for designers looking to enhance their RF and microwave systems. Whether it's for commercial telecommunications or rigorous military applications, the HMC274QS16ETR is engineered to meet the stringent demands of today's complex signal environments.
