The HMC260ALC3BTR from Analog Devices Inc. is a high-performance, MMIC SPDT (Single Pole Double Throw) non-reflective switch that operates within the frequency range of DC to 28 GHz. This versatile component is designed to meet the stringent requirements of modern RF and microwave applications, making it an ideal choice for a wide range of commercial and military systems.

Key Features

• Frequency Range: The HMC260ALC3BTR operates effectively across a broad frequency range from DC to 28 GHz, which allows for use in a variety of high-frequency applications.
• High Isolation: With excellent isolation characteristics, this switch minimizes signal leakage between the ports, which is critical for maintaining signal integrity in complex RF systems.
• Low Insertion Loss: The low insertion loss ensures minimal attenuation of the signal as it passes through the switch, preserving signal strength and quality.
• Non-Reflective Design: The non-reflective nature of the switch reduces signal reflections that can cause interference, improving the overall performance of the RF path.
• Fast Switching Speed: The HMC260ALC3BTR boasts a fast switching speed, making it suitable for applications that require quick changes between signal paths.

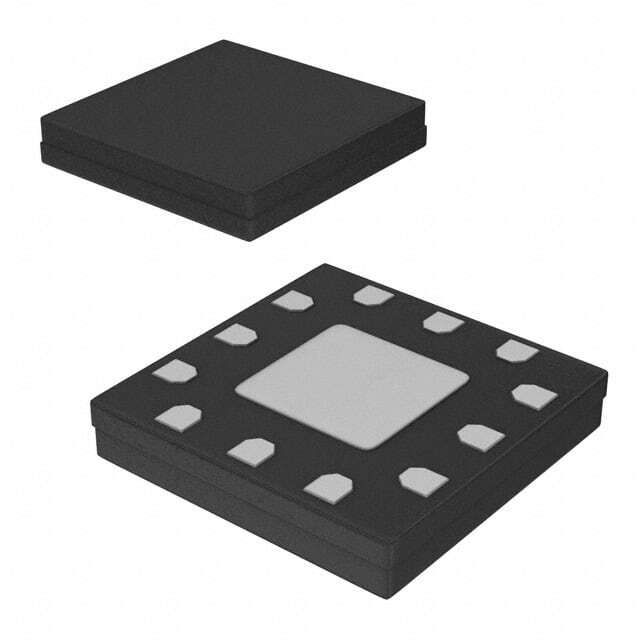

• Surface-Mount Package: Packaged in a compact 3x3 mm ceramic LCC package, this switch is designed for surface-mount technology (SMT), which facilitates easy integration into a variety of circuit designs.

Applications

The versatility of the HMC260ALC3BTR makes it suitable for a host of applications, including but not limited to:

• Test and measurement equipment
• Microwave radio and VSAT
• Space and satellite communications
• Military radar and electronic warfare
• Wireless infrastructure

With its robust design and advanced features, the HMC260ALC3BTR from Analog Devices Inc. provides engineers with a reliable and efficient switching solution for their high-frequency circuit designs. Its combination of performance, size, and surface-mount packaging makes it a valuable component for any application where RF performance is critical.
