The HMC252QS24 is a state-of-the-art non-reflective switch designed by Analog Devices Inc., a renowned leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits. This product is part of their Hittite Microwave series and is engineered to meet the rigorous demands of modern RF and microwave applications.

The HMC252QS24 is a single-pole, six-throw (SP6T) switch that operates over a wide frequency range from DC to 3 GHz, making it an ideal choice for versatile use in various communication systems. This switch is fabricated using a silicon, monolithic microwave integrated circuit (MMIC) process, which ensures high isolation and low insertion loss, key parameters for maintaining signal integrity in complex RF pathways.

With its non-reflective design, the HMC252QS24 minimizes signal reflections that can cause interference and degrade overall system performance. This feature, combined with its broad frequency range, makes it suitable for a wide array of applications including filter banks, multi-band radios, and military and space communication systems where high isolation and low signal distortion are critical.

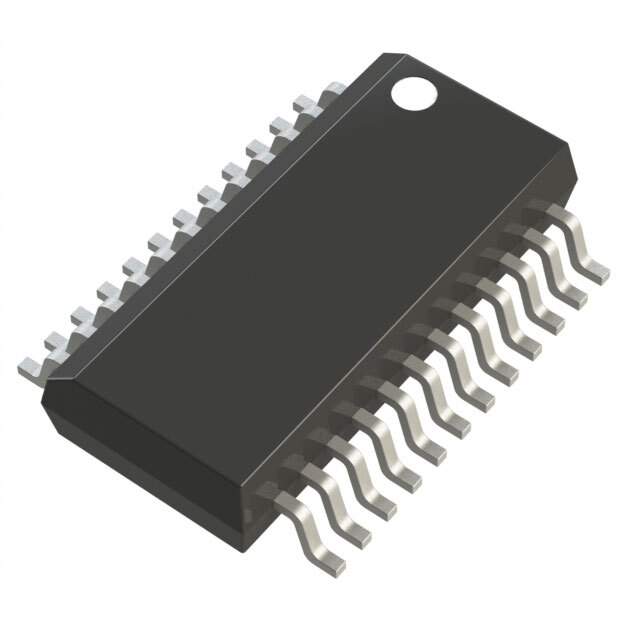

The HMC252QS24 is housed in a compact 24-lead QSOP surface-mount package, which allows for efficient utilization of PCB space without compromising performance. It operates over a temperature range of -55°C to +85°C, ensuring reliability and consistent performance even under harsh environmental conditions.

Key features of the HMC252QS24 include its excellent isolation of up to 45 dB and low insertion loss of 1.5 dB at 2 GHz. The switch also boasts fast switching speed, with a typical switching time of 10 ns, enabling rapid signal routing that is essential for high-speed communication systems. Furthermore, it requires a single positive control voltage from 0 to +5V, simplifying the power supply design and integration into existing systems.

In summary, the HMC252QS24 from Analog Devices Inc. is a robust, high-performance non-reflective switch that offers reliability, precision, and versatility for a variety of RF applications. Its combination of low insertion loss, high isolation, and fast switching speed makes it an excellent choice for designers seeking to optimize their RF signal chain.
