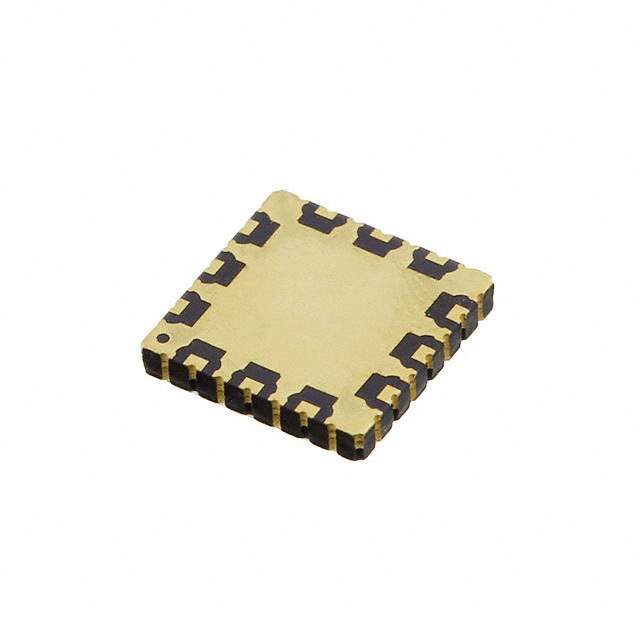

Product Overview: HMC144LH5TR by Analog Devices Inc.

The HMC144LH5TR is a high-performance, passive double-balanced mixer from Analog Devices Inc., designed to cater to a wide range of RF and IF applications. This mixer is a part of the Hittite Microwave product line, which is renowned for its exceptional performance and reliability in demanding environments. The HMC144LH5TR is housed in a compact LH5 surface-mount package, making it suitable for integration into space-constrained designs.

Key Features

• Frequency Range: The mixer supports a wide frequency range, with the RF and LO frequencies from 5 to 10 GHz and the IF frequency from DC to 4 GHz, providing versatility for various applications.
• LO/RF Isolation: It offers excellent LO to RF isolation, minimizing leakage between the local oscillator and the RF input to ensure a clean mixing process.
• Conversion Loss: With a typical conversion loss of 9 dB, the HMC144LH5TR maintains signal integrity while converting frequencies.
• Surface-Mount Package: The LH5 package is designed for surface-mount technology (SMT), facilitating easy assembly and integration into PCBs.
• High Linearity: The device provides high linearity, which is crucial for maintaining signal fidelity in complex RF systems.

Applications

The HMC144LH5TR is suitable for a variety of applications, including:

• Point-to-Point and Point-to-Multipoint Radios
• Military and Space
• Test Equipment and Sensors
• Telecommunications Infrastructure

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the HMC144LH5TR is no exception. It is manufactured to meet high standards, ensuring reliable performance for critical and high-end applications. The device's robust construction and adherence to stringent specifications make it a trusted choice for engineers and designers looking for a mixer that can withstand the rigors of both commercial and military usage.

Whether you're developing advanced communication systems or sophisticated test and measurement equipment, the HMC144LH5TR from Analog Devices Inc. provides the performance and reliability required for your high-frequency mixing needs.
