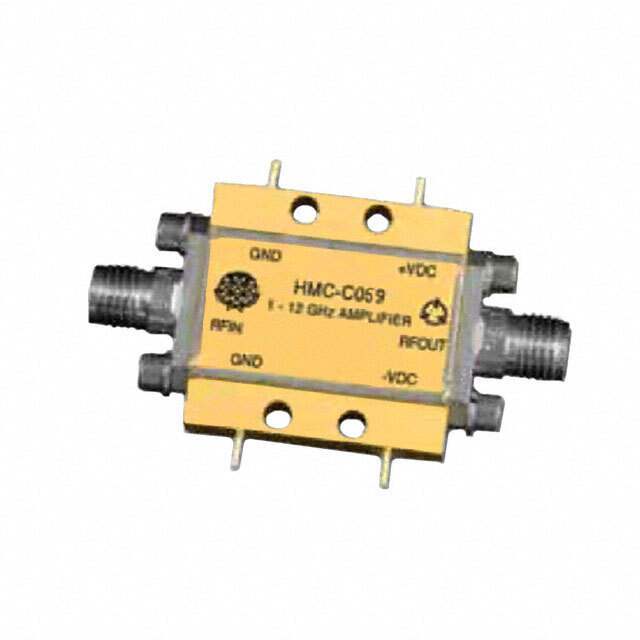

HMC-C059 Analog Devices Inc.
Same model may have multiple batches, images only for reference.

HMC-C059

Part No HMC-C059
Manufacturer Analog Devices Inc.
Catalog RF Amplifiers
Description IC RF AMP VSAT 1GHZ-12GHZ MODULE
Datasheet
HMC-C059 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The HMC-C059 is a GaAs MMIC pHEMT Low Noise Distributed Amplifier in a miniature, hermetic module with replaceable SMA connectors which operates between 1 and 12 GHz.
The amplifier provides 16 dB of gain, 1.8 dB noise figure, and up to +17 dBm of output power at 1 dB gain compression. The wideband amplifier I/Os are internally matched to 50 Ohms and are internally DC blocked.
Integrated voltage regulators allow for flexible biasing of both the negative and positive supply pins, while internal bias sequencing circuitry assures robust operation.
