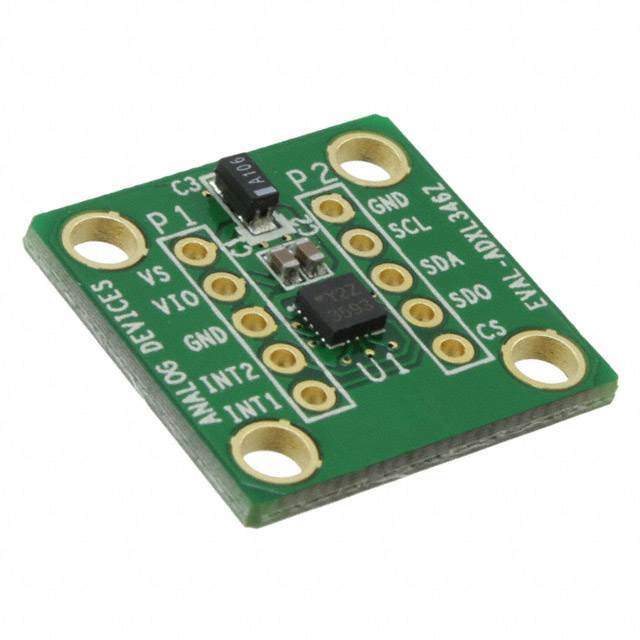

The EVAL-ADXL346Z is a comprehensive evaluation board designed by Analog Devices Inc. to facilitate the testing and development of the ADXL346, a small, thin, ultralow power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. This high-performance product captures the motion of devices by measuring the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.

The board is an essential tool for engineers and developers who need to integrate the ADXL346 accelerometer into their designs. It comes with all the necessary features to showcase the capabilities of this sensor. The EVAL-ADXL346Z connects to a user's system through a simple and convenient interface, which includes options for I²C or SPI serial communication. This flexibility allows the evaluation board to be used with a wide range of microcontrollers and systems.

The evaluation board is equipped with several key features that make it a versatile and user-friendly device for testing the ADXL346 accelerometer. It includes onboard voltage regulation and level shifting, which ensure compatibility with different logic levels and supply voltages. This means that the board can be used with both 3.3V and 5V systems without any additional components.

Additionally, the EVAL-ADXL346Z provides access to the accelerometer's multifunctional pins, allowing users to explore all features of the ADXL346, such as activity/inactivity detection, free-fall detection, and tap/double-tap recognition. The board's layout is designed for optimal signal integrity and ease of connection, with clearly labeled pins and a straightforward configuration.

The EVAL-ADXL346Z is accompanied by comprehensive documentation and software support provided by Analog Devices Inc., which includes example code, detailed datasheets, and a user guide to help developers get started quickly. With this evaluation board, users can rapidly prototype and test their applications, reducing development time and accelerating time-to-market for products that require reliable motion and orientation sensing.
