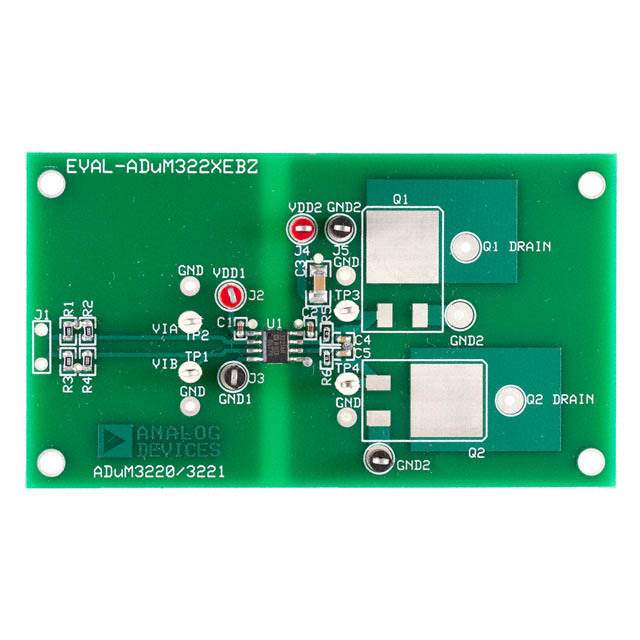

EVAL-ADUM3221AEBZ Evaluation Board by Analog Devices Inc.

The EVAL-ADUM3221AEBZ is a high-performance evaluation board designed by Analog Devices Inc. to showcase the capabilities of the ADuM3221A, a robust, high-speed, 2A dual-channel gate driver specifically engineered to drive insulated gate bipolar transistors (IGBTs) and power MOSFETs. This evaluation board is an essential tool for engineers and designers who require a reliable and efficient solution for their high-power switching applications.

At the heart of the EVAL-ADUM3221AEBZ is the ADuM3221A driver that utilizes Analog Devices' proprietary iCoupler technology to provide optical isolation, thereby ensuring that the low-voltage control side of the system is completely isolated from the high-voltage switching side. This isolation is critical for protecting sensitive microcontrollers and logic interfaces from the high-voltage transients typically found in power electronics applications.

The ADuM3221A offers an impressive set of features, including an industry-leading 4kVrms isolation rating, which makes it suitable for use in harsh electrical environments. Its high-speed operation with fast propagation delays and short rise and fall times is ideal for high-frequency switching applications. Additionally, the driver supports a wide supply voltage range, which provides flexibility in various design scenarios.

The EVAL-ADUM3221AEBZ evaluation board comes with all the necessary components to facilitate the quick and easy testing of the ADuM3221A driver. It includes onboard connectors and headers for convenient interfacing with external circuits, as well as test points for monitoring the performance of the driver. The layout and design of the board have been optimized to minimize parasitic inductances and capacitances, ensuring the true performance of the driver can be observed and measured.

Whether you're developing inverters, motor controllers, or any other application that requires efficient and reliable gate driving capabilities, the EVAL-ADUM3221AEBZ evaluation board is an invaluable asset. By providing a hands-on experience with the ADuM3221A driver, this board allows for comprehensive testing and validation, ensuring that your designs meet the highest standards of performance and reliability.

For more information, technical specifications, and support resources, please visit the Analog Devices Inc. website or contact their customer service team.
