Same model may have multiple batches, images only for reference.

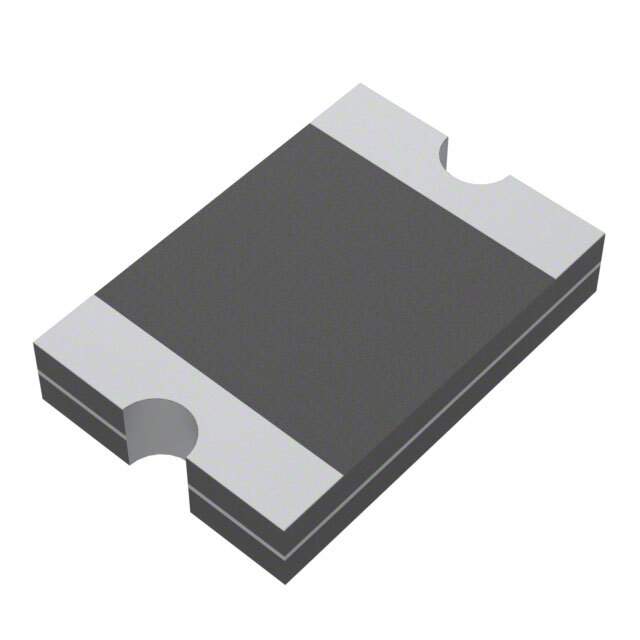

SMD1812B110TF/24 Real Image
Same model may have multiple batches, images only for reference.

SMD1812B110TF/24

Part No SMD1812B110TF/24
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description PPTC SMD 1812, 24V 1.1A, REEL 7"  /  Polymeric PTC Resettable Fuse 8V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr YAGEO
Series SMD1812
Package Tape & Reel
Type Polymeric
Voltage - Max 8V
Current - Max 100 A
Current - Hold (Ih) (Max) 1.1 A
Current - Trip (It) 2.2 A
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Max) 210 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric), Concave
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.079" (2.00mm)
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names YAG6738CT,YAG6738TR,YAG6738DKR
Standard Package 1,000
Win Source Part Number 1210066-SMD1812B110TF/24
Ultra Librarian 3D Model Ultra Librarian SMD1812B110TF/24 CAD Model

Description

The YAGEO SMD1812B110TF/24 is a polymeric PTC resettable fuse with a tape and reel package.

  • Height Seated: Not provided
  • Standard Package: 1000
  • Mounting: SMD (SMT)
  • Thickness: 0.079 inches (2.00mm)
  • Voltage Rating: 8V
  • Maximum Current: 100A
  • Maximum Current Hold: 1.1A
  • Current Trip: 2.2A
  • Time to Trip: 300ms
  • Package/Case: 1812 (4532 Metric), Concave
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.179 inches L x 0.128 inches W (4.55mm x 3.24mm)
  • Resistance Initial (Ri) (Min): 40 mOhms
  • Resistance Post Trip (R1) (Max): 210 mOhms
