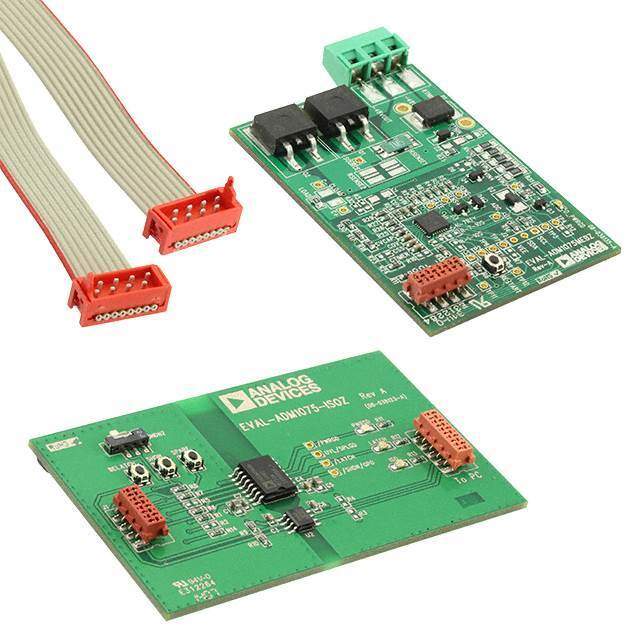

The EVAL-ADM1075MEBZ from Analog Devices Inc. is a state-of-the-art evaluation board designed to showcase the capabilities of the ADM1075, a robust hot swap controller and power monitoring IC. This evaluation platform is an essential tool for engineers and designers looking to implement advanced power management solutions in their systems.

The ADM1075 is a versatile chip that offers both hot swap control functionality and precise digital power and energy monitoring. It enables safe insertion and removal of circuit boards into live backplanes or other powered systems, preventing glitches on the supply rail and protecting both the card and the system from the effects of inrush currents.

This evaluation board is equipped with an array of features that facilitate the development and testing of hot swap setups with the ADM1075. It includes a configurable hot swap control section that allows users to set the desired current limit, inrush current rate, and fault response times. The board also provides access to the ADM1075’s power monitoring features, enabling the measurement of voltage, current, and power consumption with high accuracy.

The EVAL-ADM1075MEBZ comes with a user-friendly interface and can be connected to a PC via an I2C-compatible serial interface. This allows for real-time monitoring and control using Analog Devices’ proprietary evaluation software. The software provides a graphical user interface (GUI) for easy manipulation of the ADM1075's parameters, and for observing the performance of the system under various conditions.

With its compact form factor and comprehensive feature set, the EVAL-ADM1075MEBZ is an indispensable tool for developing applications such as servers, telecom and network equipment, industrial systems, and any other scenario requiring reliable power distribution and management. By leveraging this evaluation board, developers can significantly accelerate their design process and achieve a quicker time-to-market for their hot swap and power monitoring solutions.
