SSM2519ACBZ-RL: A High-Quality Audio Amplifier by Analog Devices Inc.

The SSM2519ACBZ-RL is a sophisticated and fully integrated, high-efficiency, Class-D audio amplifier designed by Analog Devices Inc. This component is particularly engineered to deliver exceptional audio performance for a wide range of applications. With its compact and energy-efficient design, it is an ideal solution for portable and space-constrained audio systems.

Key Features

• Output Power: Capable of delivering 2W into a 4Ω load and 1.4W into an 8Ω load, ensuring ample power for various audio applications.
• High Efficiency: With a Class-D architecture, it offers more than 90% efficiency, significantly reducing heat dissipation and power losses.
• Audio Quality: The SSM2519ACBZ-RL provides high-quality audio output with a Signal-to-Noise Ratio (SNR) of 95dB, which ensures clear and crisp sound.
• Integrated Digital Audio Interface: Features an I²S-compatible digital audio interface, making it easy to connect to modern microprocessors and DSPs.
• Supply Voltage Range: Operates over a wide 2.5V to 5.5V supply voltage range, accommodating various power sources and systems.
• Advanced Protection: Includes built-in pop and click suppression, over-temperature, and short-circuit protection, enhancing the durability and reliability of the audio system.

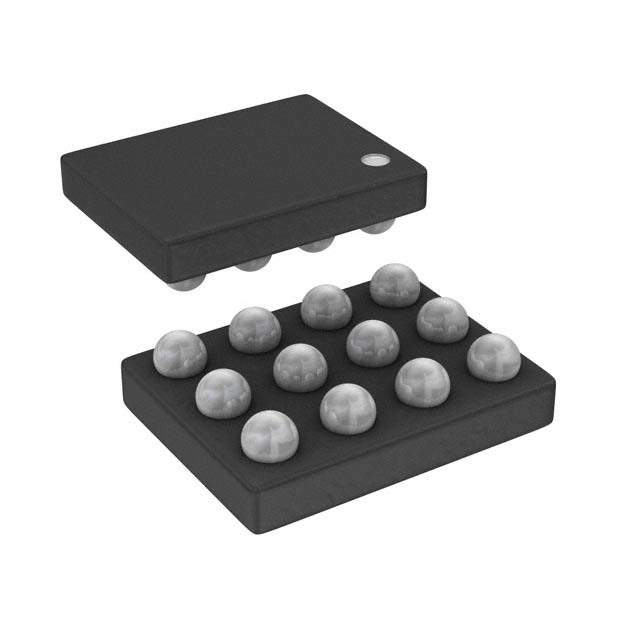

• Space-Saving Package: Available in a compact 9-ball, 1.5mm x 1.5mm WLCSP (Wafer Level Chip Scale Package), it is suitable for space-constrained applications.
• RoHS Compliant: The device adheres to RoHS standards, ensuring compliance with environmental and safety regulations.

Applications

The versatility of the SSM2519ACBZ-RL makes it suitable for a diverse range of applications, including:

• Mobile phones and tablets
• Portable media players
• Wireless speakers and headphones
• Home entertainment systems
• Educational and electronic toys

With its robust feature set and high-performance capabilities, the SSM2519ACBZ-RL from Analog Devices Inc. stands out as a superior choice for designers seeking an audio amplifier that delivers both power and precision in a small footprint. Whether for personal entertainment or professional audio systems, this integrated circuit meets the demands of modern audio applications.
