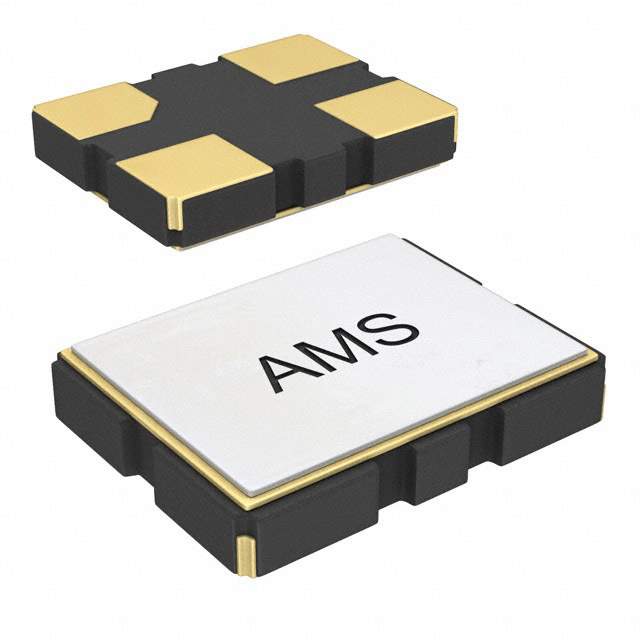

ASE-20.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASE-20.000MHZ-LC-T

Part No ASE-20.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 20.0000MHZ CMOS SMD / 20 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASE
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 20 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-9565-1,535-9565-2,Q5561648,ASE20000MHZLCT,ASE-20.000MHZ-L-C-T,535-9565-6
Standard Package 1,000
Win Source Part Number 1136209-ASE-20.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASE-20.000MHZ-LC-T CAD Model

Description

The ASE series oscillator from Abracon LLC is a standard XO type component used in various electronic circuits.

  • Frequency: 20 MHz
  • Mounting Type: SMD (SMT)
  • Package: tape and reel
  • Standard Package: 1,000
  • Height: 0.047 inches (1.20mm)
  • Frequency Stability: ±50ppm
  • Current Supply (max): 7mA
  • Current Supply (disable) (max): 10μA
  • Voltage Supply: 3.3V
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 0.126 inches L x 0.098 inches W (3.20mm x 2.50mm)
  • Series: ASE series
