Analog Devices Inc. LTM2881HY-3 Isolated RS485/RS422 μModule Transceiver

The LTM2881HY-3 from Analog Devices Inc. is a complete, galvanically isolated RS485/RS422 μModule transceiver, designed to provide robust communication in noisy industrial environments and to break ground loops. This innovative product ensures reliable data transmission and reception over long distances, making it an ideal choice for industrial control systems, factory automation, and networked communication systems.

Key Features:

• Integrated Isolation: With its built-in, isolated DC/DC converter, the LTM2881HY-3 provides up to 2,500Vrms of isolation between the logic interface and the transceiver. This feature is crucial for protecting the logic side from high voltage spikes and surges that are common in industrial settings.
• Robust Data Transfer: The device supports RS485 and RS422 communication standards, allowing for differential data transmission which is less susceptible to electromagnetic interference (EMI) and noise, and capable of reaching up to 20Mbps data rates.
• Flexible Power Options: The module can be powered from a single 3.3V or 5V supply, with the isolated side deriving its power from the integrated DC/DC converter. This simplifies power supply design and provides flexibility in system-level power schemes.
• High Operating Temperature Range: The LTM2881HY-3 is designed to operate reliably over a wide temperature range, from -40°C to +105°C, making it suitable for harsh industrial environments.
• Enhanced Safety: Safety features include a minimum of 15kV ESD HBM (Human Body Model) protection on the transceiver interface, which helps to prevent damage from electrostatic discharge during handling and operation.

Applications:

• Industrial Control Networks
• Factory Automation
• Building Automation
• Instrumentation
• Networked Communication Systems

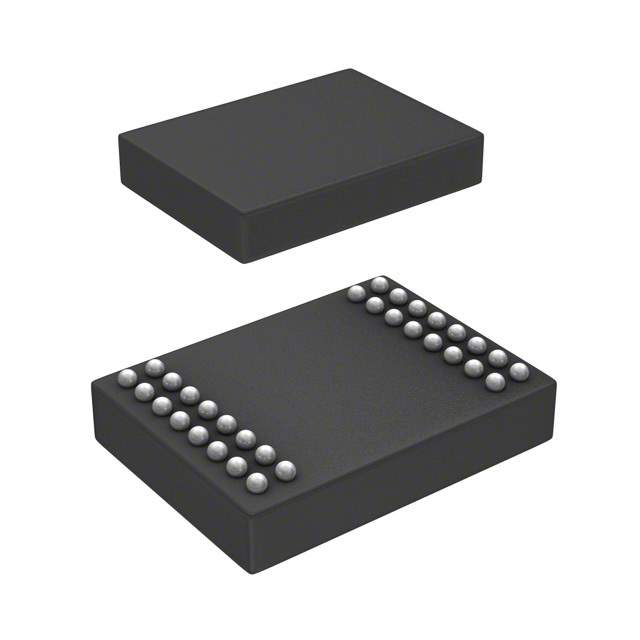

The LTM2881HY-3's compact, surface-mount LGA package ensures a minimal footprint on the PCB, which is valuable in space-constrained applications. Additionally, the module's ease of use, requiring minimal external components, accelerates design cycles and time-to-market for engineers working on advanced industrial communication systems. With its robust feature set and proven reliability, the LTM2881HY-3 from Analog Devices Inc. is a standout solution for isolating and protecting communication interfaces in demanding applications.
